About the product

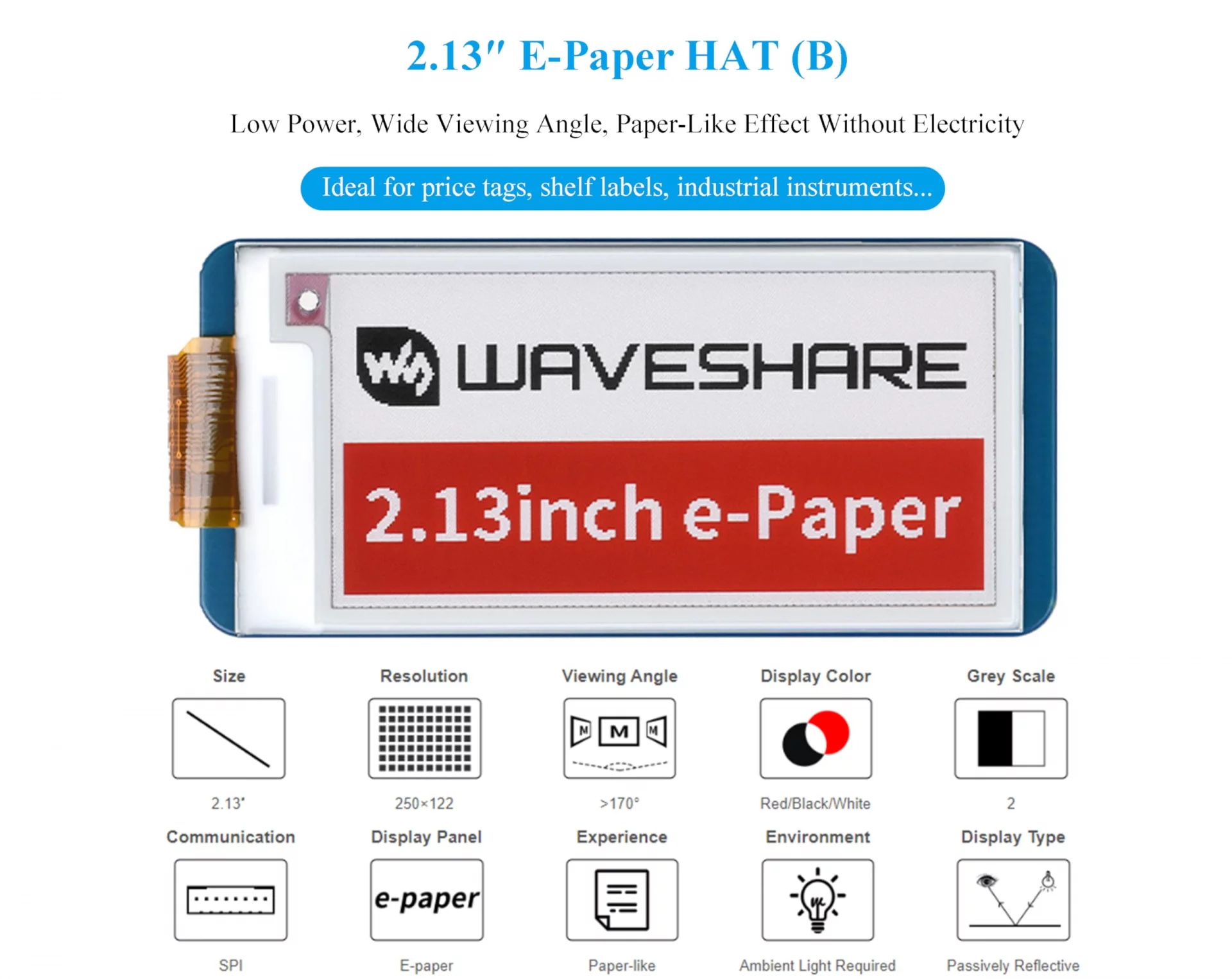

- This is 2.13inch E-Paper HAT (B) E-Ink display HAT, 250x122 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

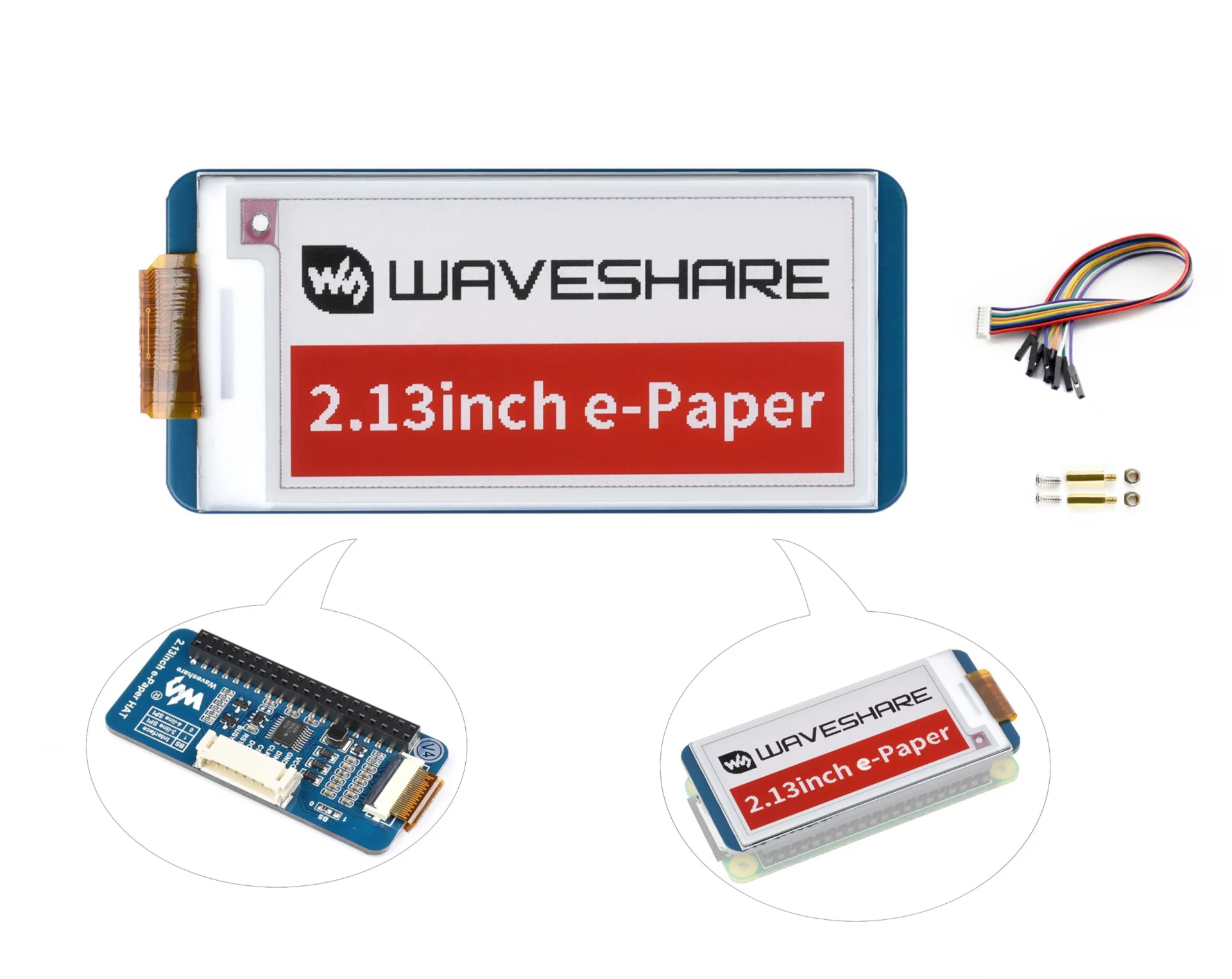

- Standard RPi 40PIN GPIO extension header,Compatble with Raspberry Pi series boards, Jetson Nano. Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

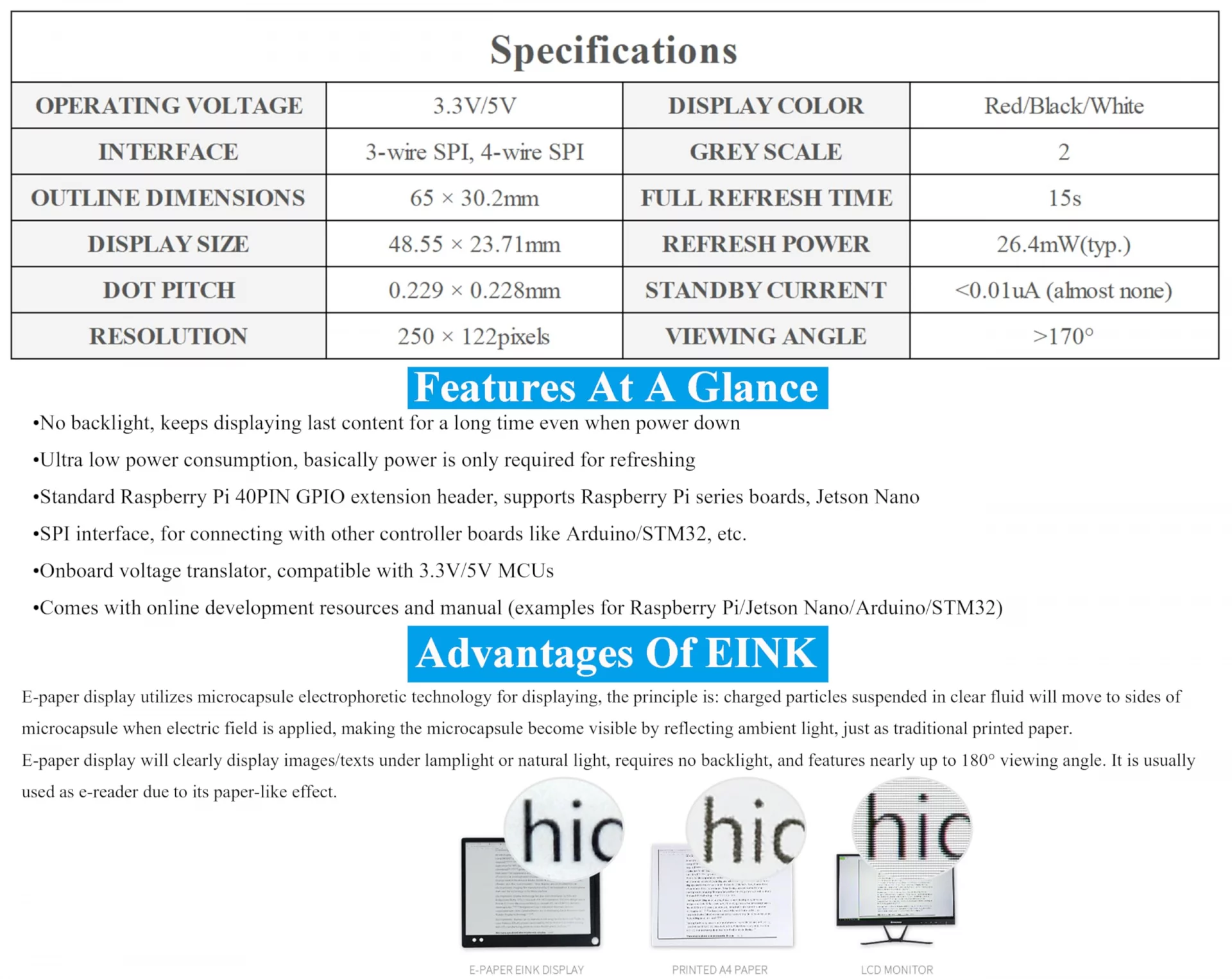

- Operating voltage: 3.3V/5V. Interface: 3-wire SPI, 4-wire SPI. Outline dimension: 65mm 30.2mm. Display size: 23.71mm 48.55mm. Dot pitch: 0.229 0.228.
- Display color: red, black, white. Grey level: 2. Full refresh time: 15s. Refresh power: 26.4mW(typ.). Standby power: <0.017mW. Viewing angle: >170.
