About the product
- Input Voltage: DC 3-12V, Signal Input Voltage: 100uV-300mV, Module Size: 32 X 22mm/1.26 X 0.87inch(L*W)

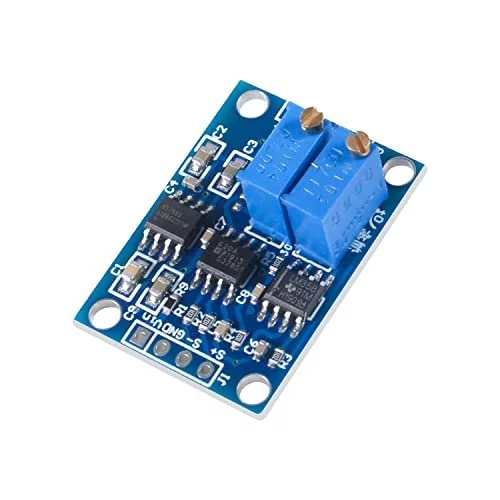

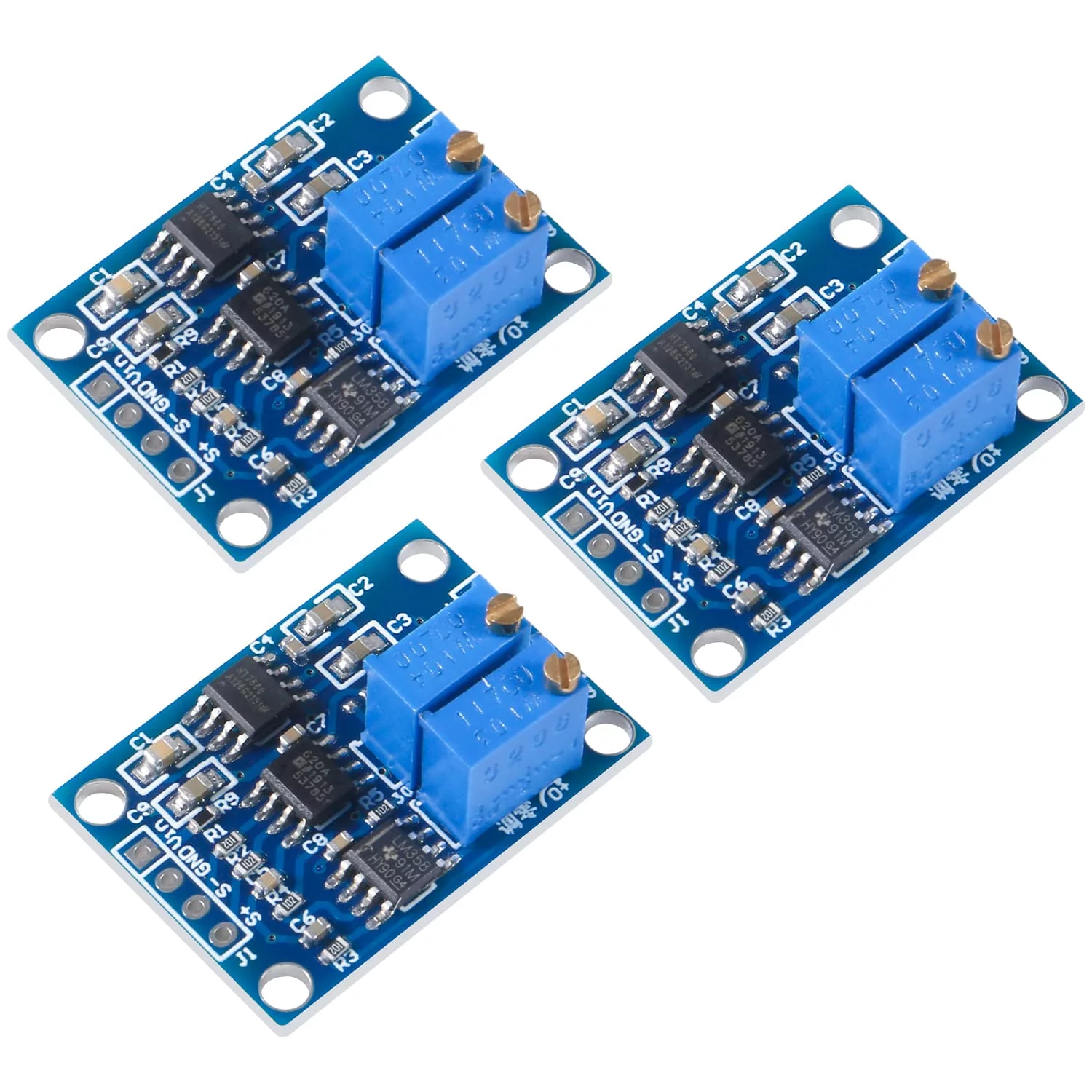

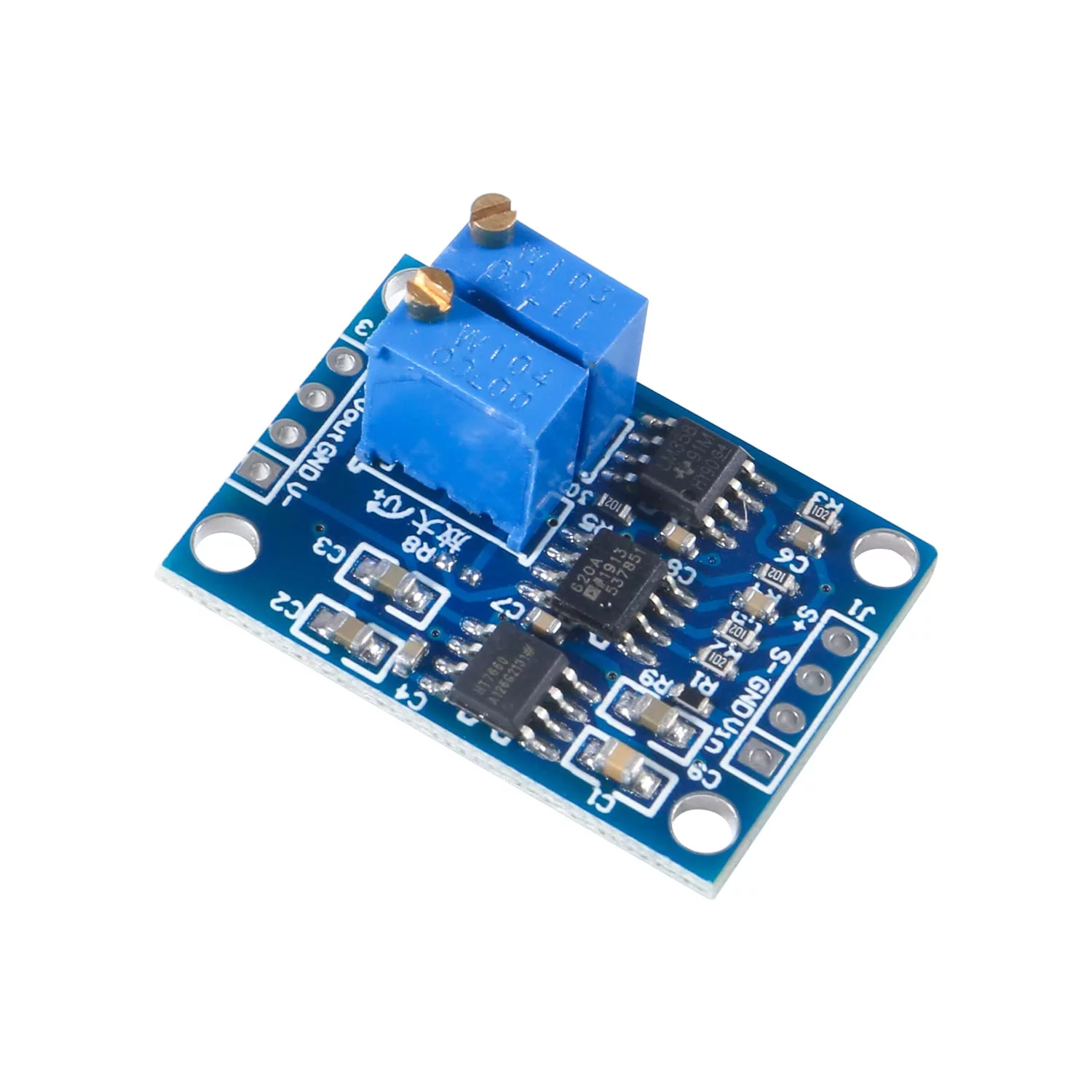

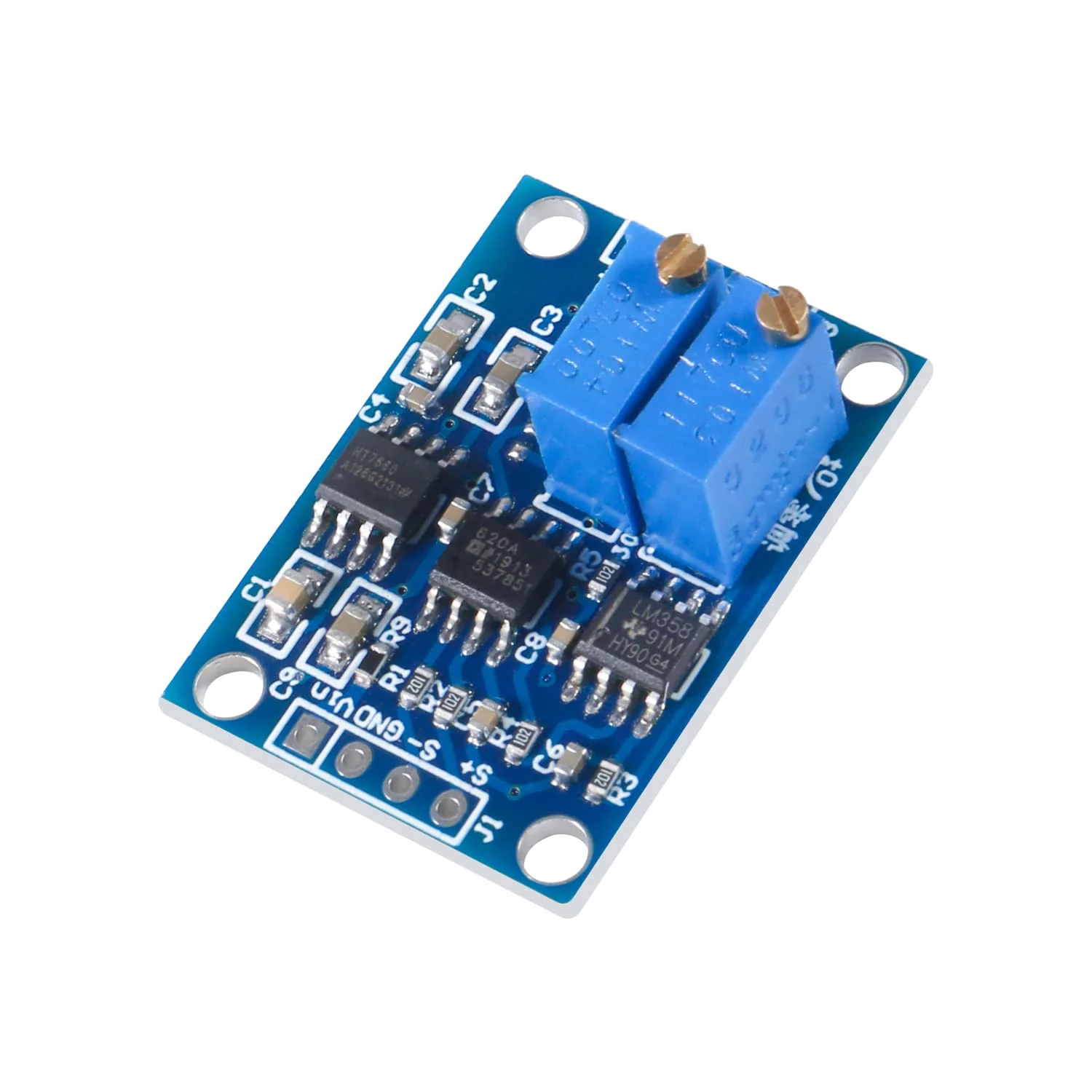

- Using AD620 as the main amplifier, can amplify uV, mV voltage. Magnification 1.5-10000 magnification, adjustable. High precision, low offset, better linearity. Adjustable zero to improve accuracy. Can be used for AC, DC signal amplification. A certain electronic basis is required for this module use.
- Equipped with AD620 instrumentation amplifier chip support 10V(maximum) signal voltage output with high precision and good linearity better performance than LM358
- Support null point adjustment, negative voltage output and noise filtering capabilities ensure you can get the low distortion but high frequency signal ideal for small signal amplification
- Note: 1. There may be slight size deviations due to manual measurement, different measuring methods and tools. 2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
