About the product

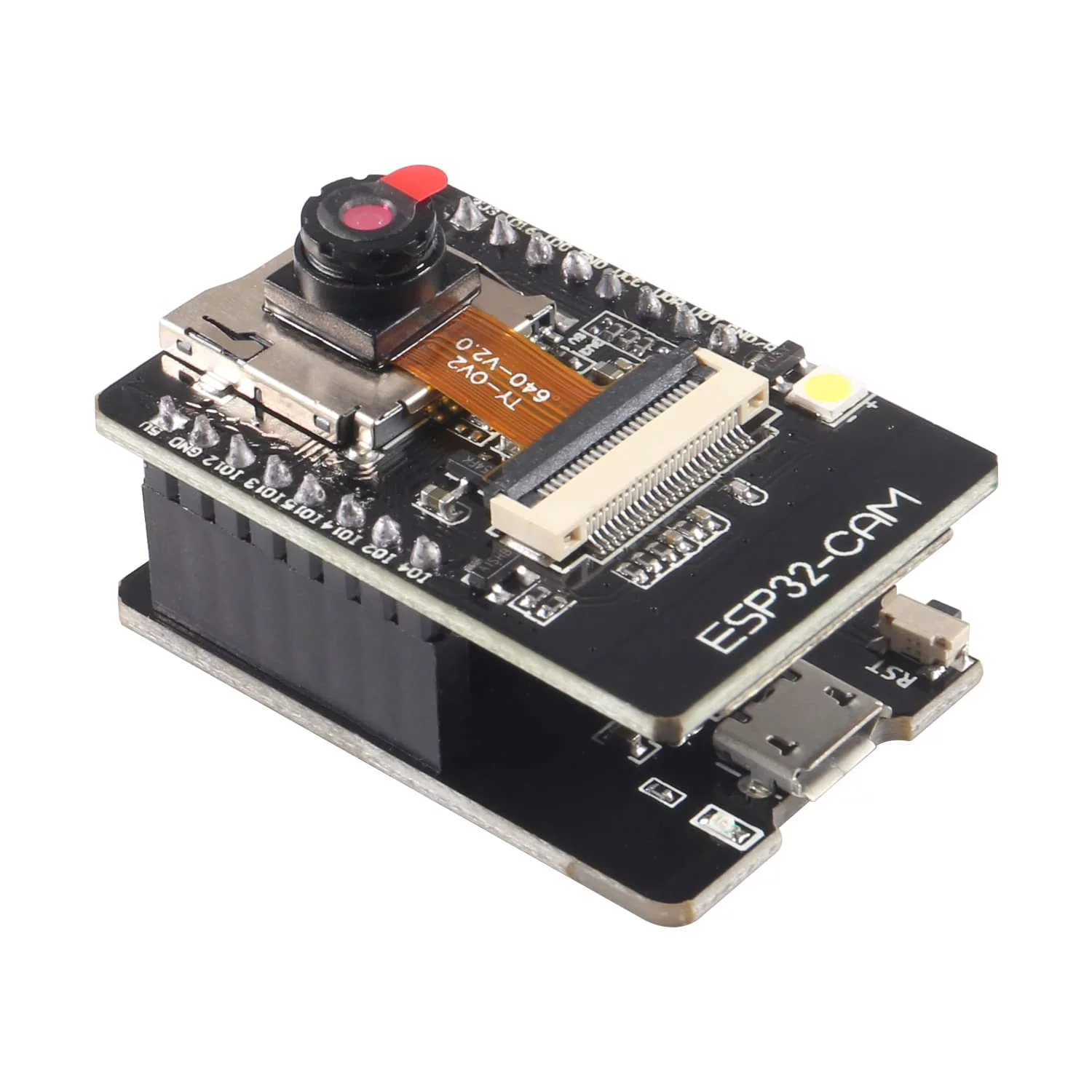

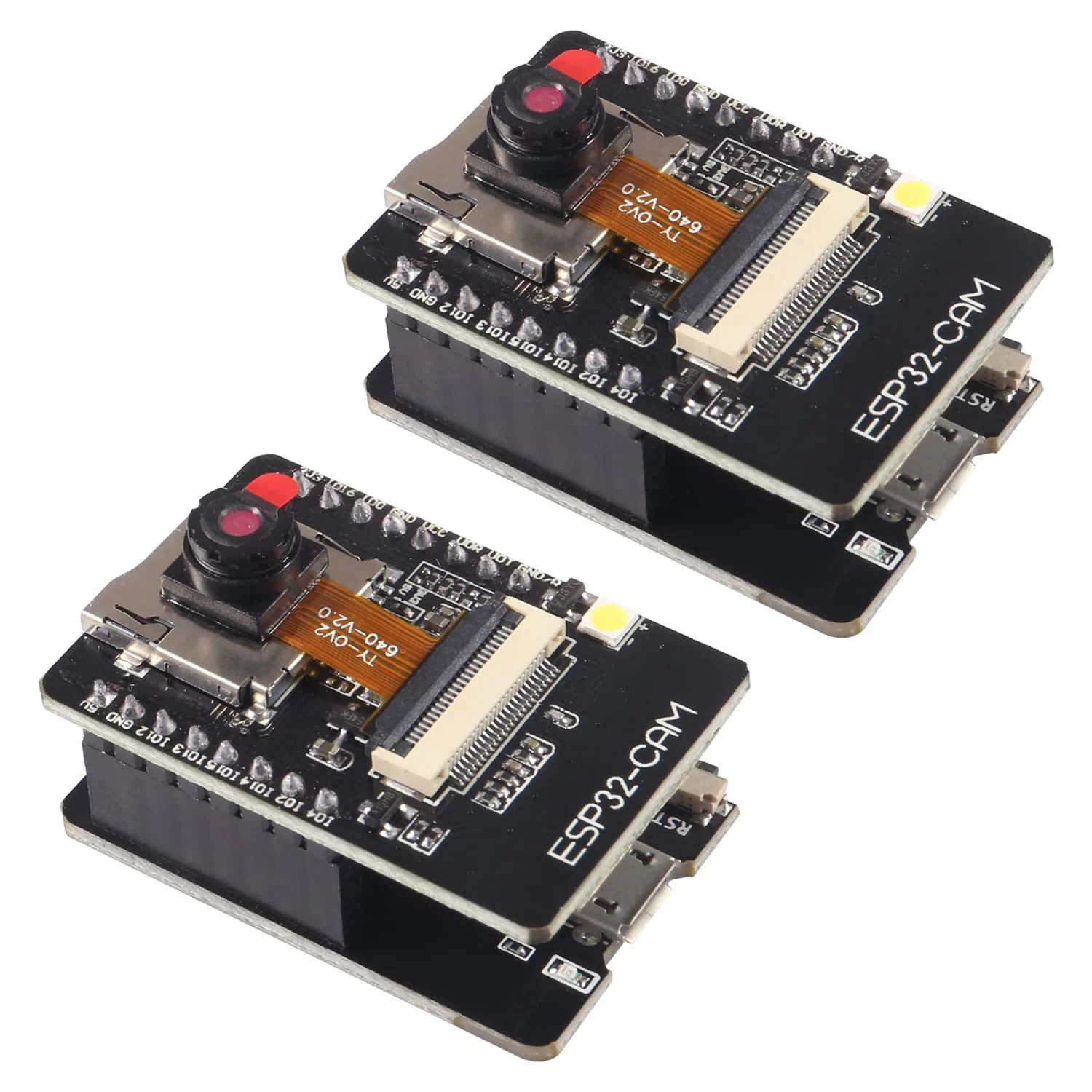

- The ESP32-CAM camera module is based on an ESP32 chip with an OV2640 2MP camera, built-in flash, also supports OV7670 cameras. Small and compact design, can fit on a solderless breadboard, saves space for your project.
- Specifications: The board uses high-performance dual-core 32-bit LX6 CPU, can be used as an application processor, integrates WiFi, traditional Bluetooth, and low power BLE. its main frequency adjustment ranges from 80MHz to 240MHz, adopts 7-stage pipeline architecture, on-chip sensor, Hall sensor, temperature sensor, and so on.
- Features: the board fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, have 9 GPIO ports, built-in 520 KB SRAM plus 4MB PSRAM, support UART/SPI/I2C/PWM and other interfaces, STA/AP/STA+AP working mode, maximum 4G TF card, image WiFI upload, multiple sleep modes, secondary development, etc.
- Use: ESP32-CAM can be widely used in various IoT applications, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.
- Note: since comes with ESP32-CAM-MB: Micro USB to Serial Port CH340C chip, so no longer needs to use a converter to program it. Plug and play, use the Micro USB cable to connect the PC and the ESP32-CAM-MB board.
| Brand | AOKIN |
| Model number | A89-2 |
| GTIN |
