About the product

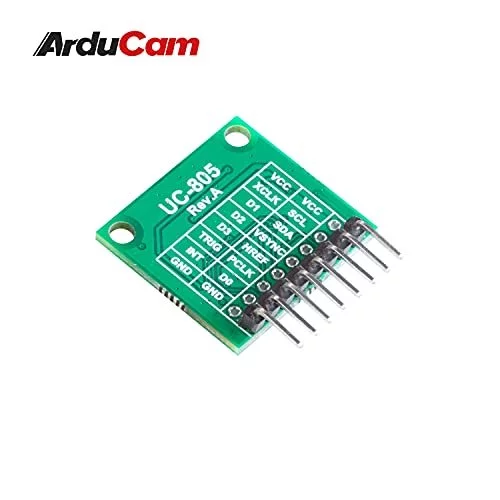

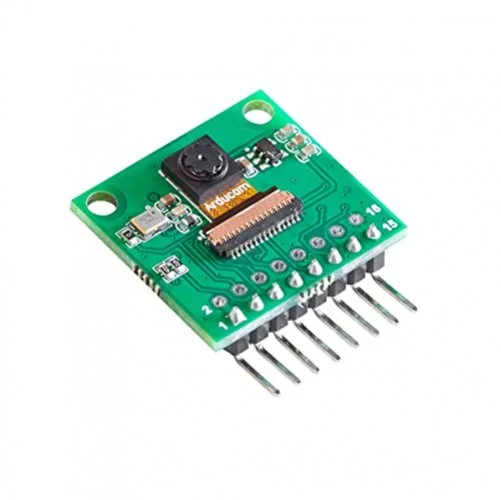

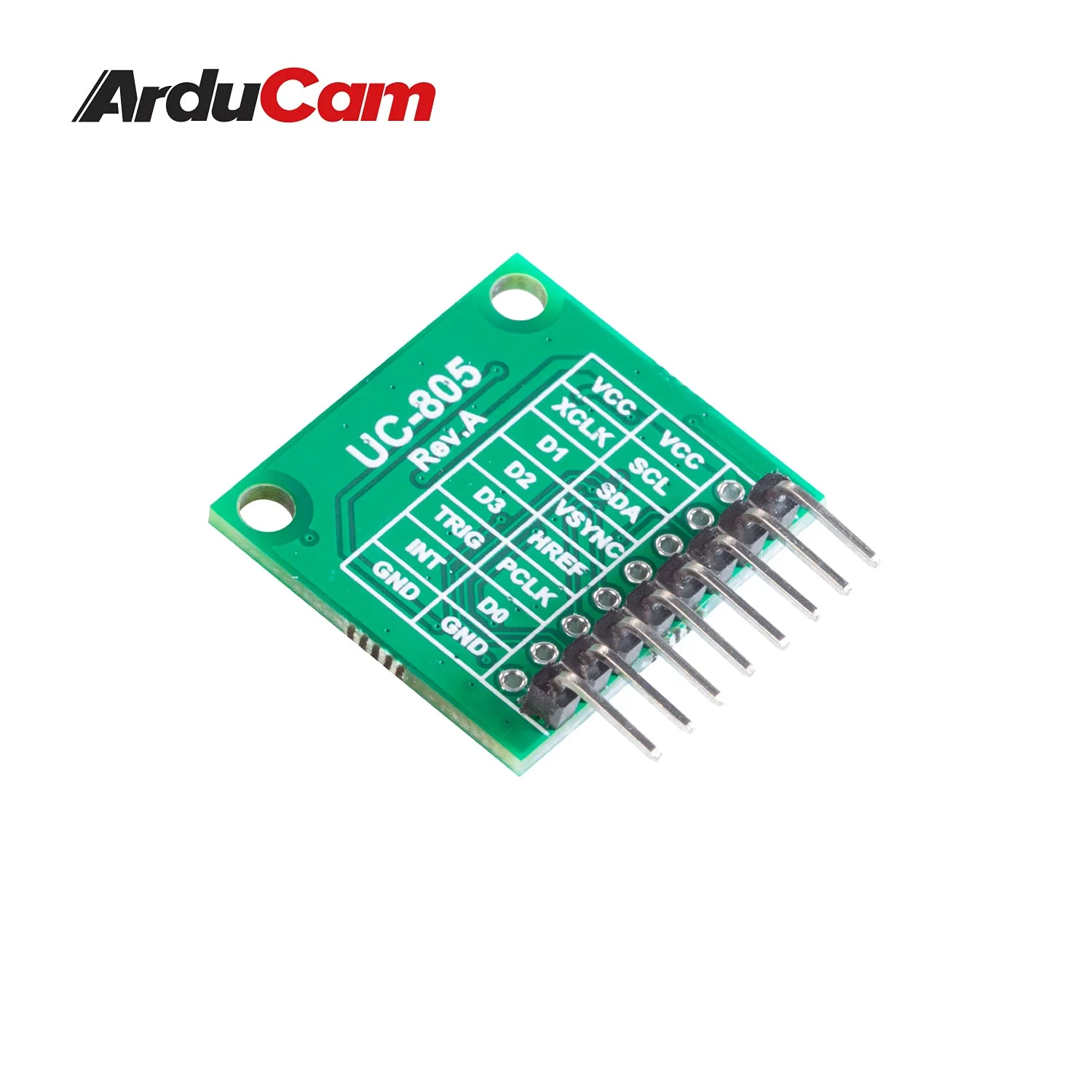

- This QVGA camera module features ultra low power consumption based on Himax HM01B0-MWA, designed for building machine vision projects and Always on Service applications.
- Key SPECS: 320 x 320 resolution, supports for QVGA window, Monochrome, up to QVGA @ 60FPS
- Consumption: Standby < 200uW, <1.1mW QQVGA resolution at 30FPS, < 2mW QVGA resolution at 30FPS
- Output: Configurable 1-bit video data serial interface with video frame and line sync, and motion detection wakeup interrupt output.

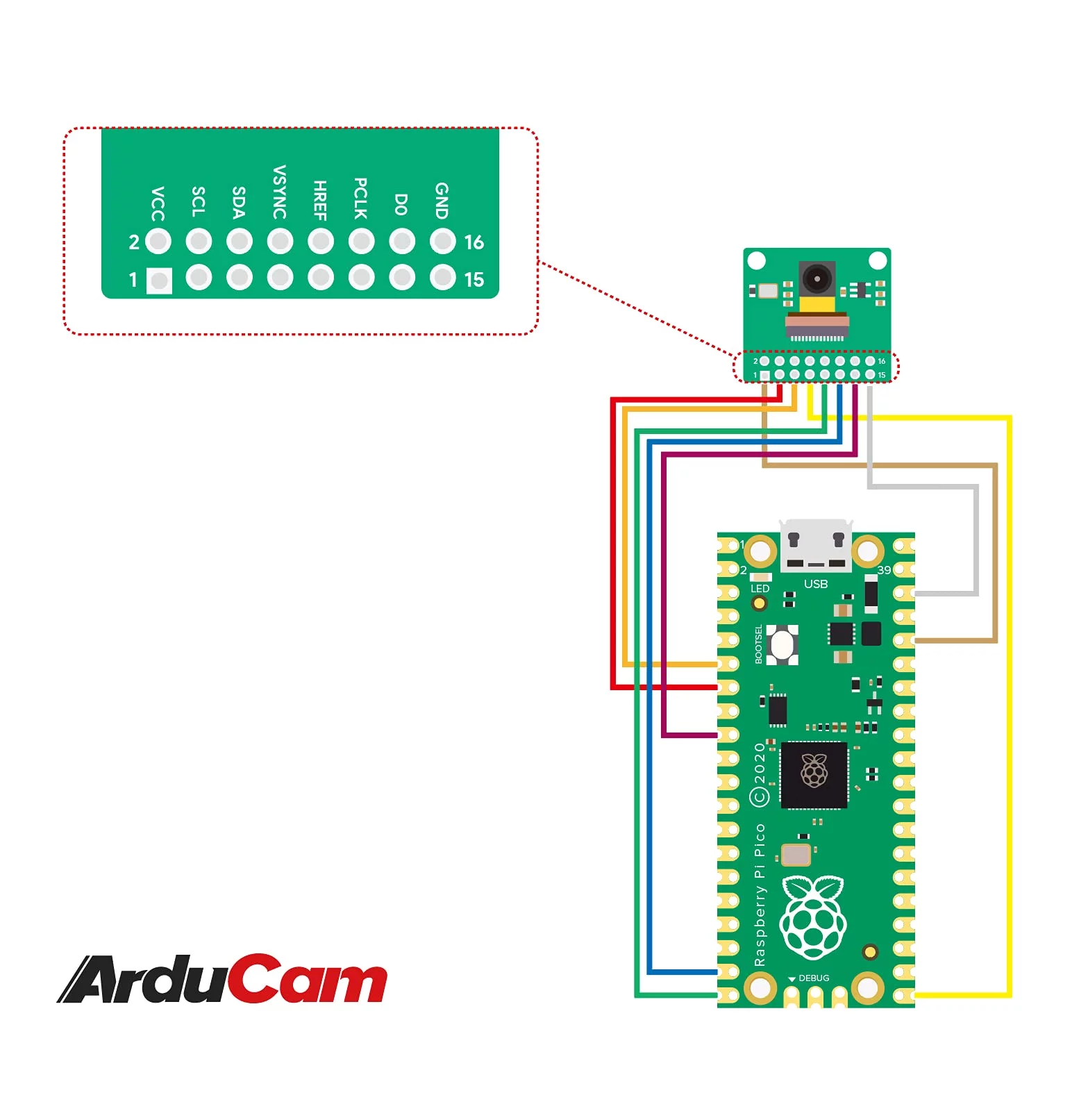

- Easy To Connect: No any adapter needed, just connect to Raspberry Pi pico and other third-party RP2040 boards with pre-soldered header and included jump wires, the even numbered line ports are reserved for expansion.
