About the product
- serial null modem serial cable (7 wire crossed type full handshaking) connects 2 DTE devices with COM port RS-232 compatible interface (Not for 15 pin 3 row computer monitor VGA-video)

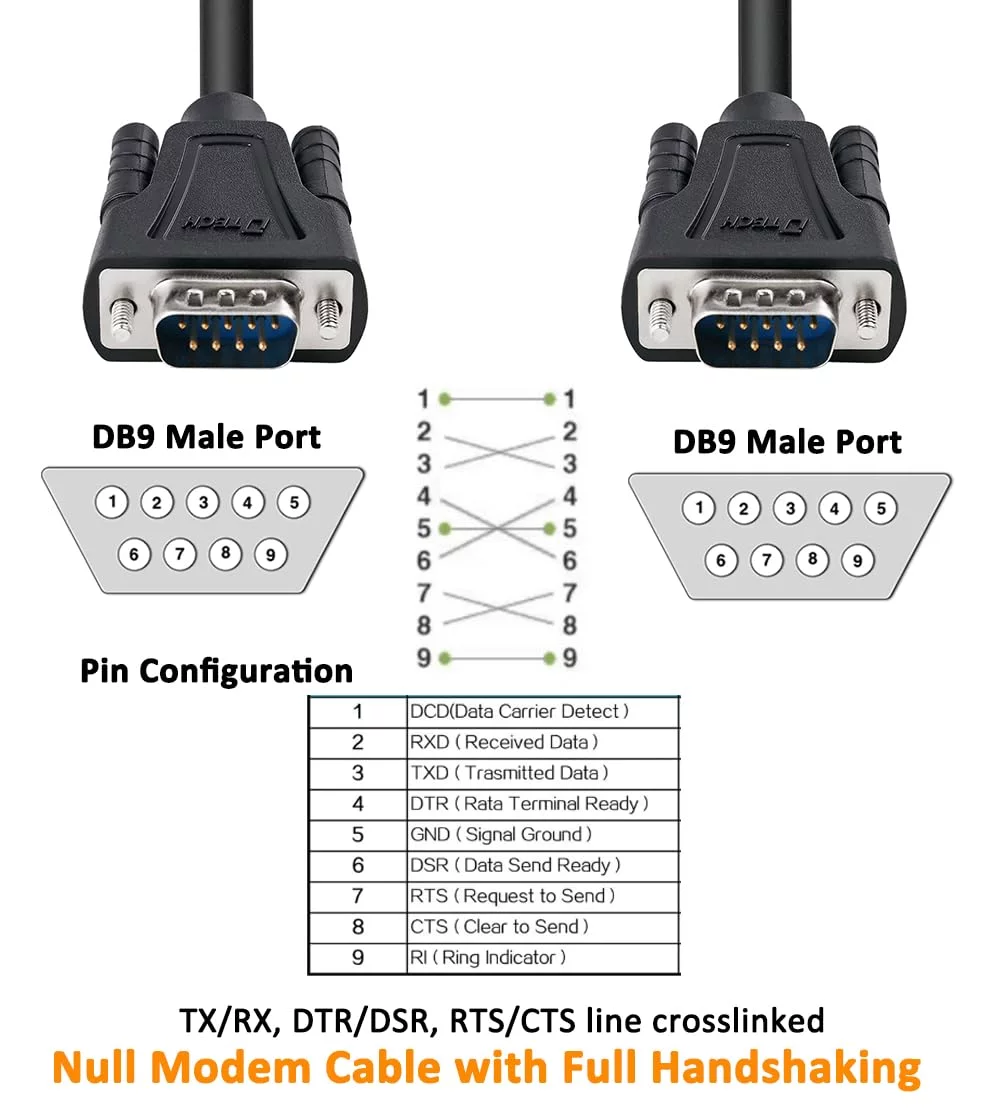

- 9 prong serial cable wired as a 9 pin serial port Null-Modem cord that 2-3, 4-6, 7-8 line are cross linked (TX RX RTS CTS DTR DSR wires are connected); standard AL foil shielded DE9 male RS232 cable

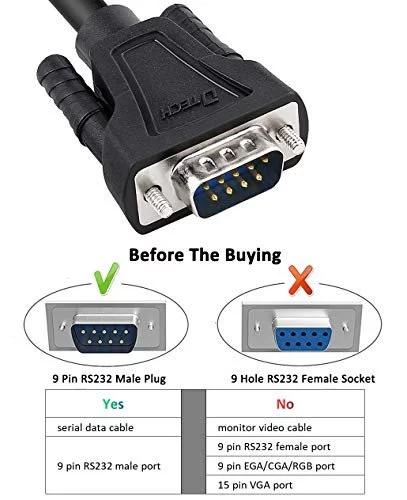

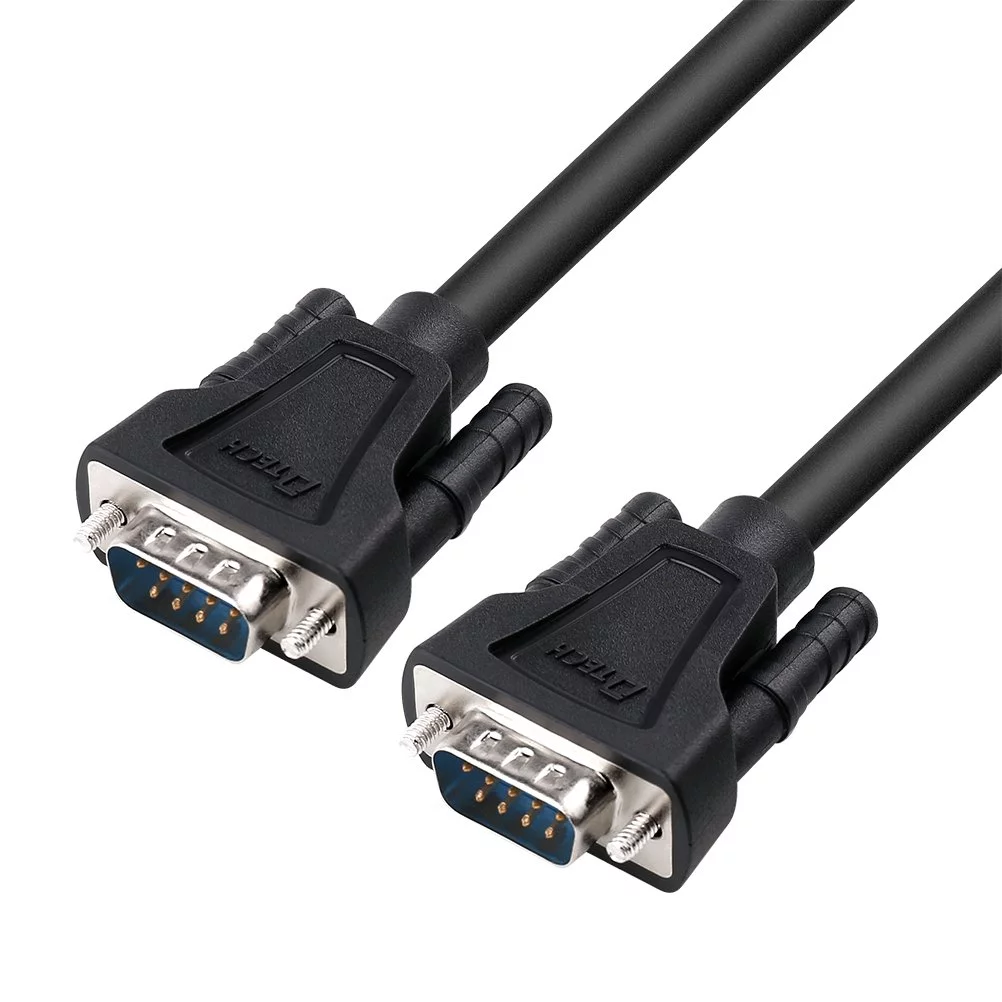

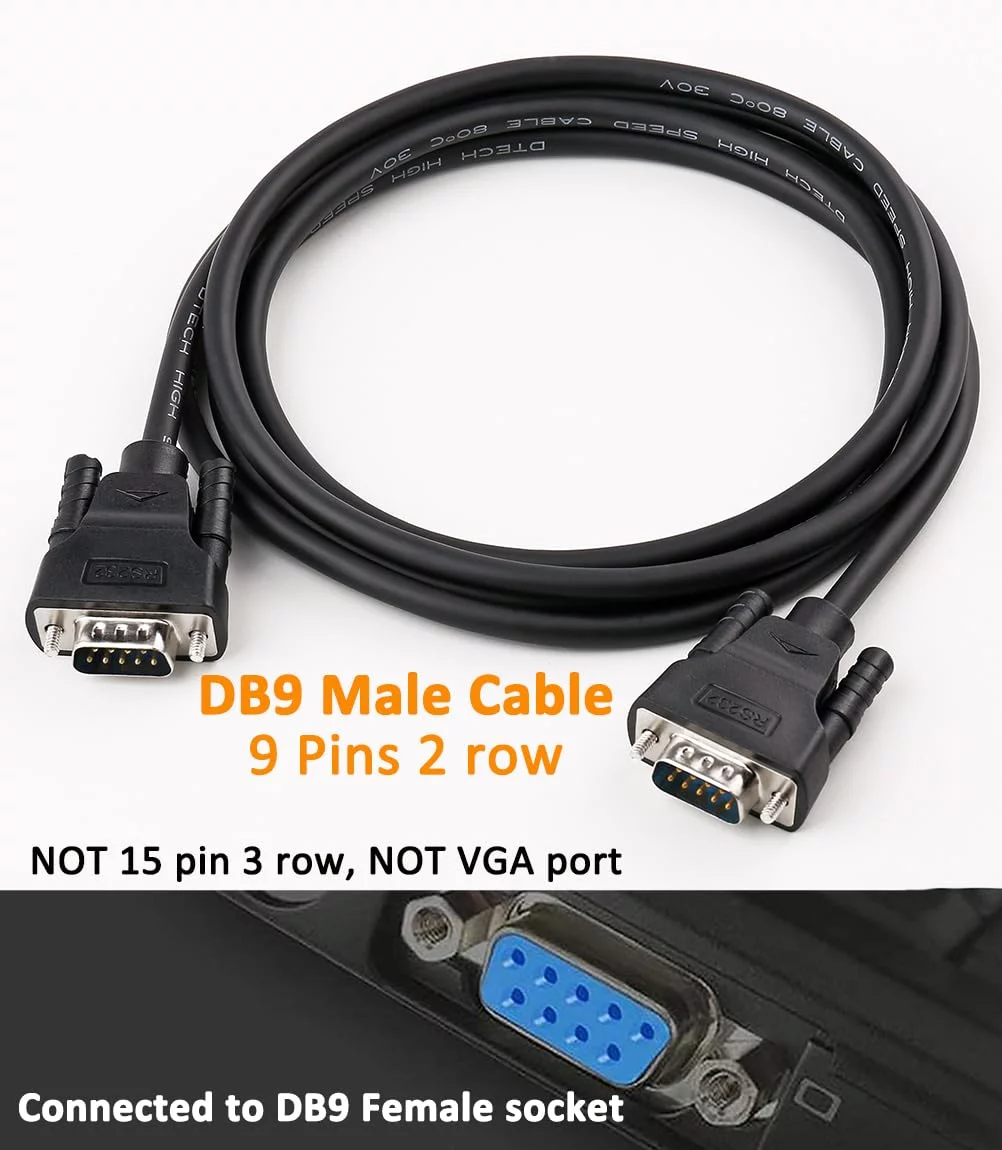

- 9 pin 2 row DB9 male to male connector on each end equipped with screws to ensure an easy and solid nullmodem cord connection for stable serial cross data communication (Not 15 pin 3 row VGA cord)
- The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code (RS-232 serial cable, not DB15 VGA-cable)
- 1.5 feet short null serial adapter for RS232C lab equipment, PC laptop desktop computer, switch hub, router to transfer file, share resource, direct serial communication link, debugging , testing
