About the product
The insulation resistance tester features voltage measurement range from 250V to 1000V, resistance range from 0.1M? to 5G?, DC voltage range from 20 to 1500V, and AC voltage range from 20 to 750V (45~1kHz). It has range selection, data hold function, and accurate reading, which meets the needs of electricity and household maintenance.

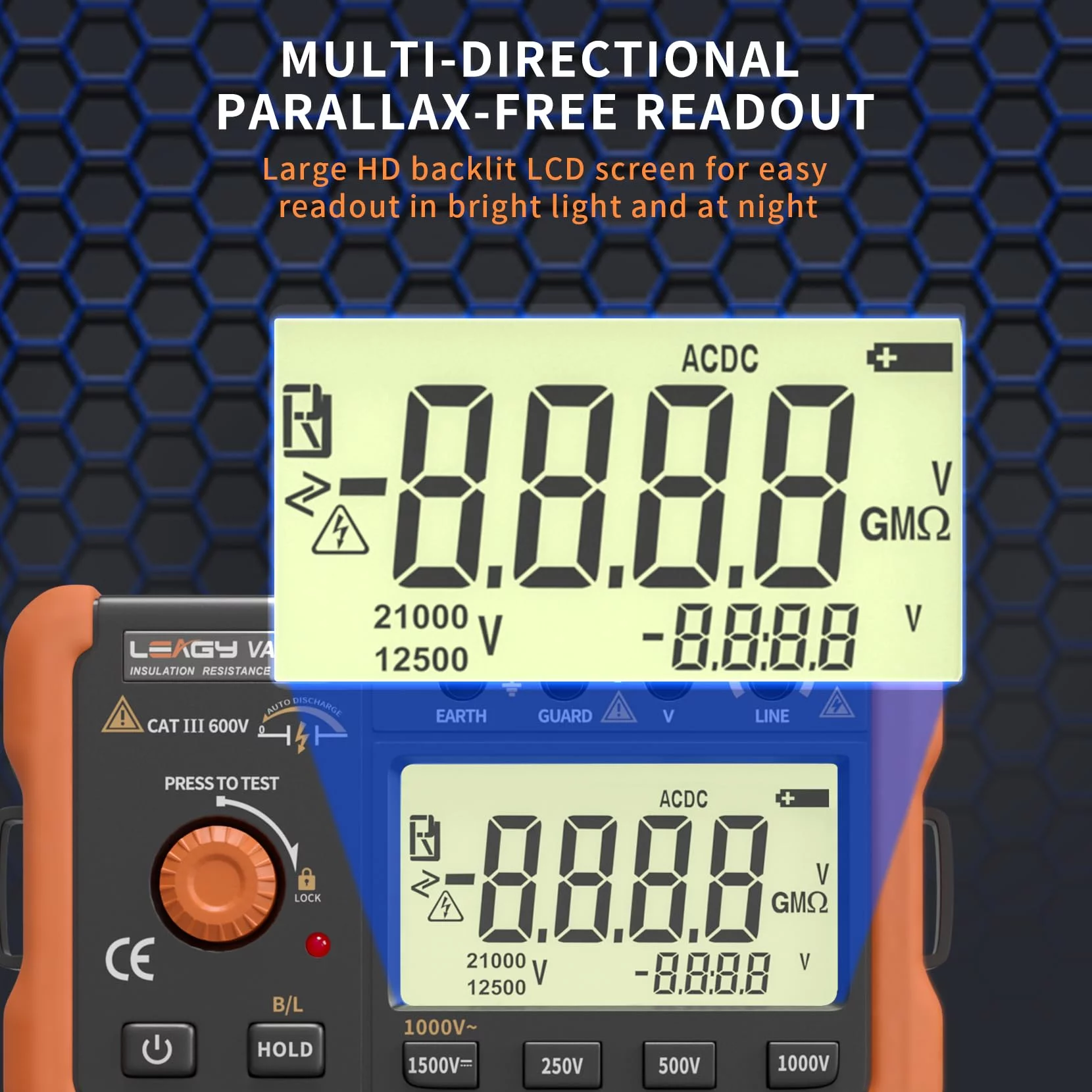

Large LCD screen with backlit display, high-definition LCD display, maximum display of 9999, clear and uniform characters, with unit symbols displayed. Backlight allows for use in low light or dark environments. The backlight can be turned on or off, providing energy-saving options. The instrument can be powered by both batteries and an external power source through a DC12V power adapter jack. With the adapter, there's no need to worry about running out of power. Low battery warning display, the instrument will automatically power off after 15 minutes of inactivity. With long battery life and an audible alarm when high voltage output is detected, safety and efficiency are ensured. The short-circuit current is ?1mA. The automatic discharge time when the test is disconnected is 1 second. Suitable for various environments: The LEAGY VAD78 insulation resistance tester with a strap design, has strap holes on both sides of the instrument, which can be hung around the neck for operation. The accessory includes a strap. LEAGY VAD78 Insulation Tester is widely used for measuring the insulation resistance of electrical equipment and insulation materials, such as transformers, motors, cables, switches, and appliances, as well as for maintenance, testing, and validation of various electrical equipment.
