About the product

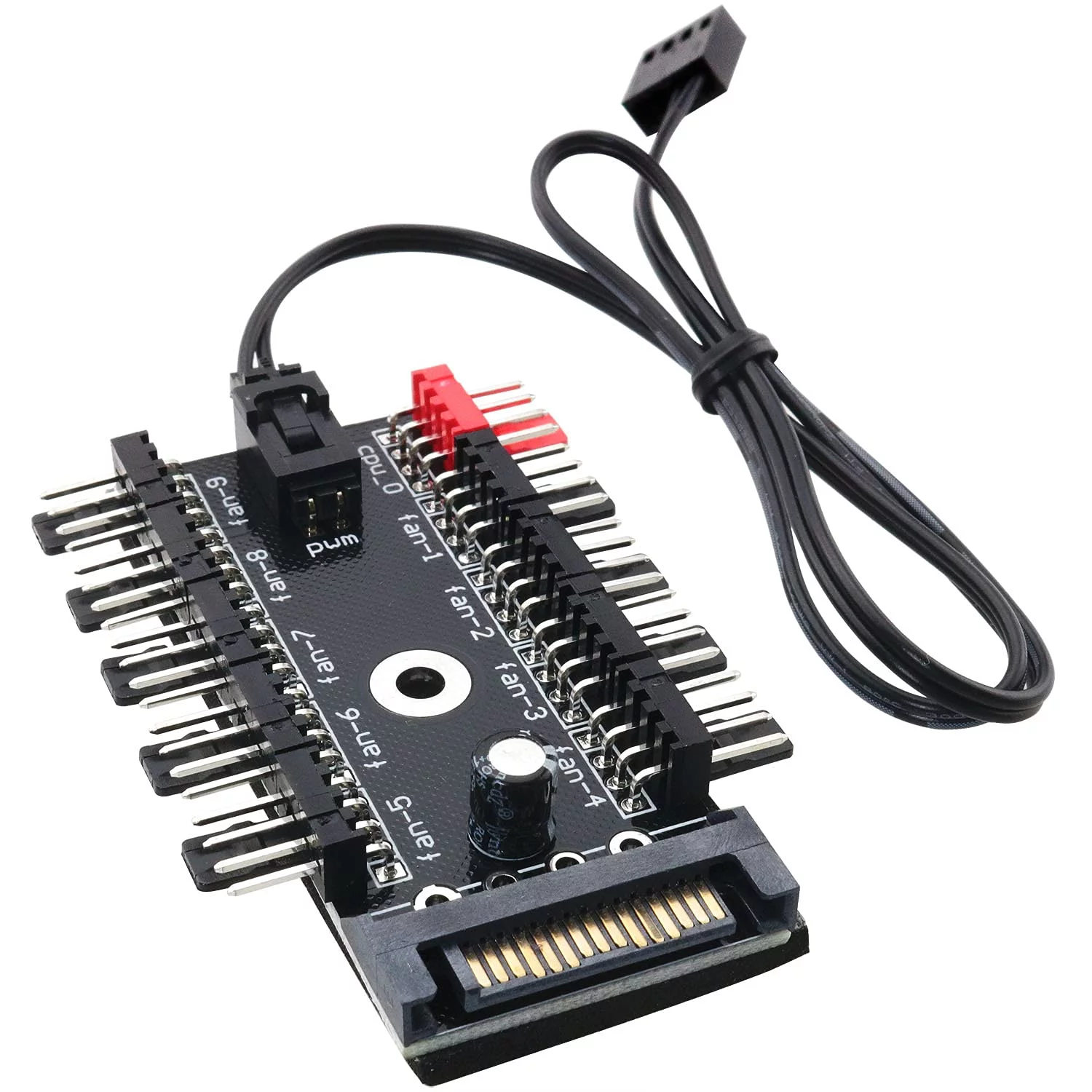

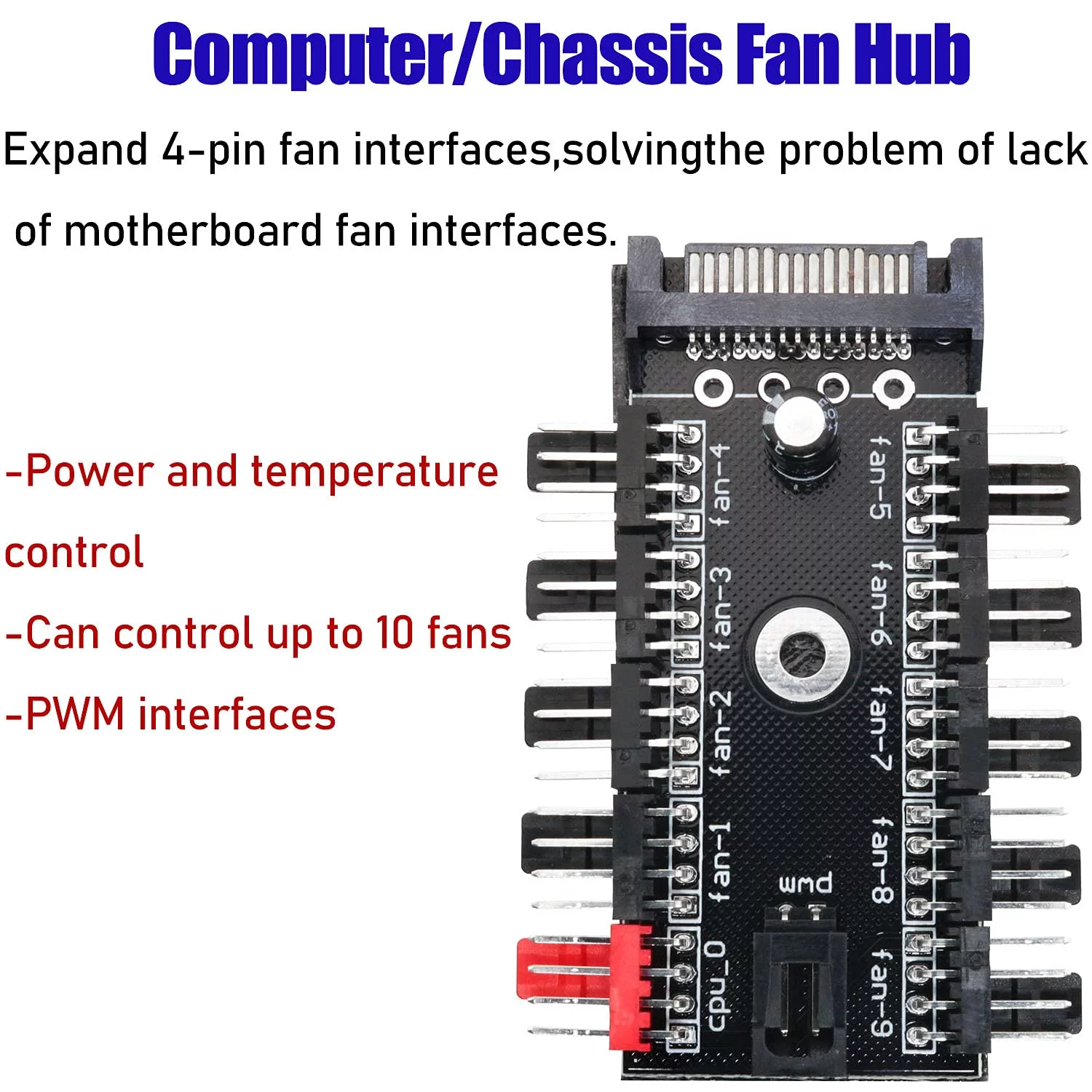

- 12V 10-way 4pin SATA fan hub, to solve the problem of insufficient motherboard fan ports. The hub has 10 fan ports, can support 10 fans, can meet various host requirements, and supports 3pin/4pin fans.

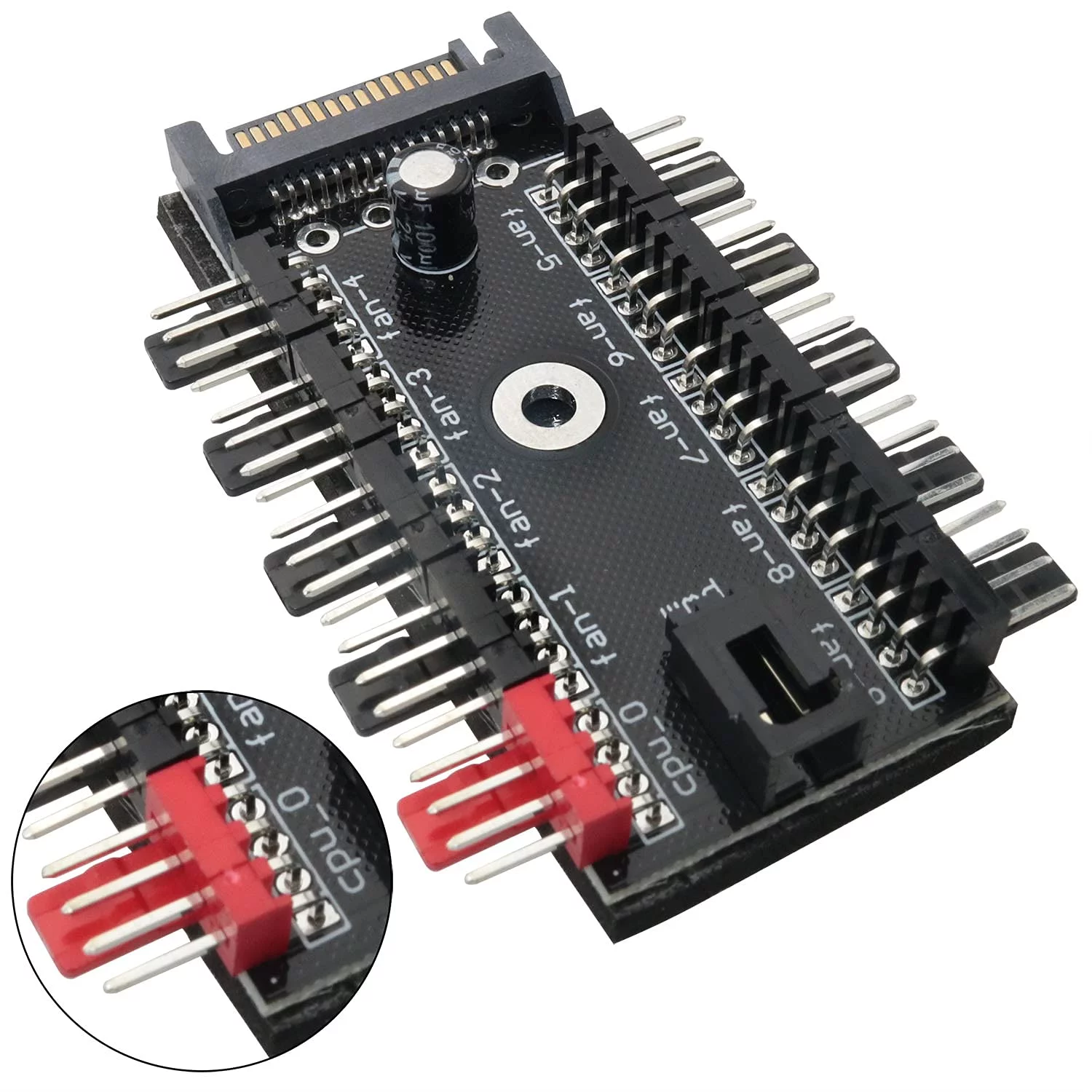

- Installation steps: The PWM port is connected to the CPU fan port on the motherboard. The red port is dedicated to the CPU fan. Connect 1 fan to the red portand then connect the rest of the fans. Then you need to connect the fan hub\'s PWM cable to the motherboard. Connect the SATA cable to the fan hub.
- Equipped with PWM cable: The hub is equipped with a PWM cable with a length of 40CM, which can support the back line. After the PWM cable is connected to the main board, the temperature control and speed can be controlled by the main board.
- Convenient installation: the hub is fixed with 3M glue, and the back of each hub is equipped with an American 3M glue, which can make the hub work well; Fixed in the chassis.
- Package content: 1 X 12V 10-channel 4pin fan hub, 1X PWM connection cable.
- Compatible devices: Desktop
