About the product

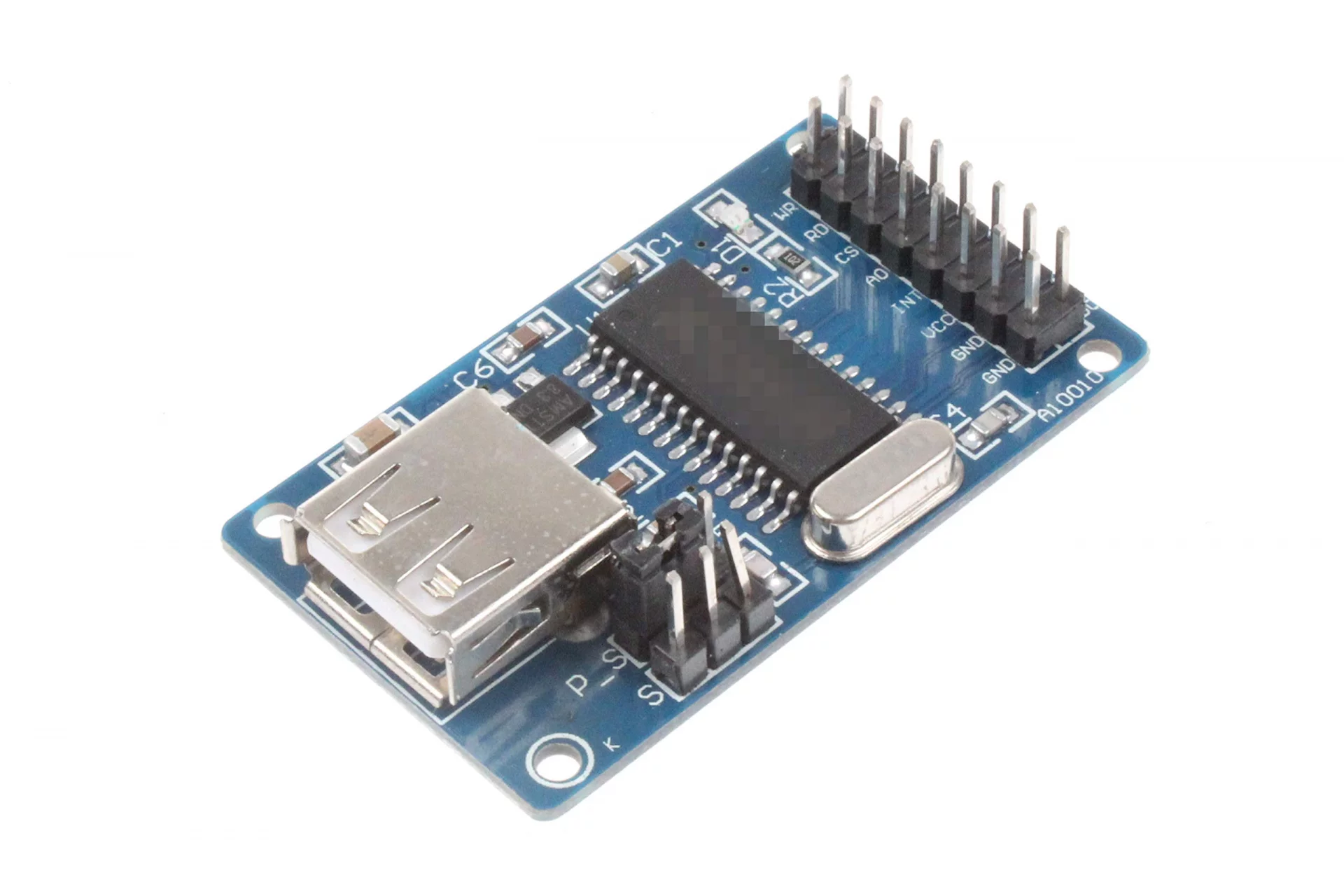

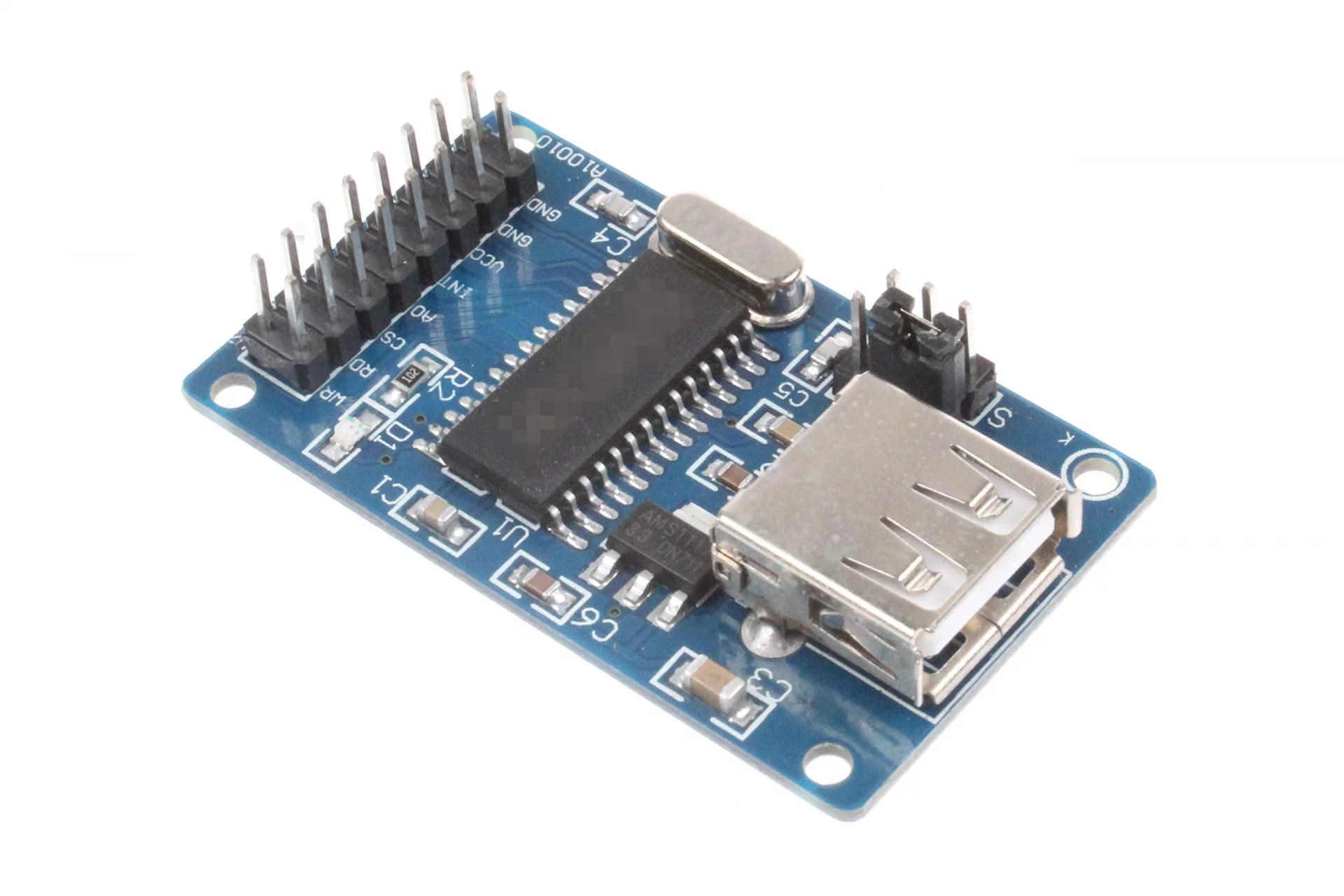

- CH375 CH375B is a universal interface chip of USB bus. It has an 8-bit data bus and read, write, chip select control lines and interrupt output. It can be easily connected to the system bus of microcontrollers, DSPs, MCUs, MPUs, and other controllers.
- In the USB host mode, the CH375 CH375B also provides serial communication, which is connected to the microcontroller, DSP, MCU, MPU, etc. via serial input, serial output, and interrupt output.
- According to the selection of jumper cap, it can work in parallel mode or in serial mode.
- 2x8 Pins for easy connection to the MCU. With USB status indicator. The onboard 3.3V LDO 1117 provides up to 800mA.

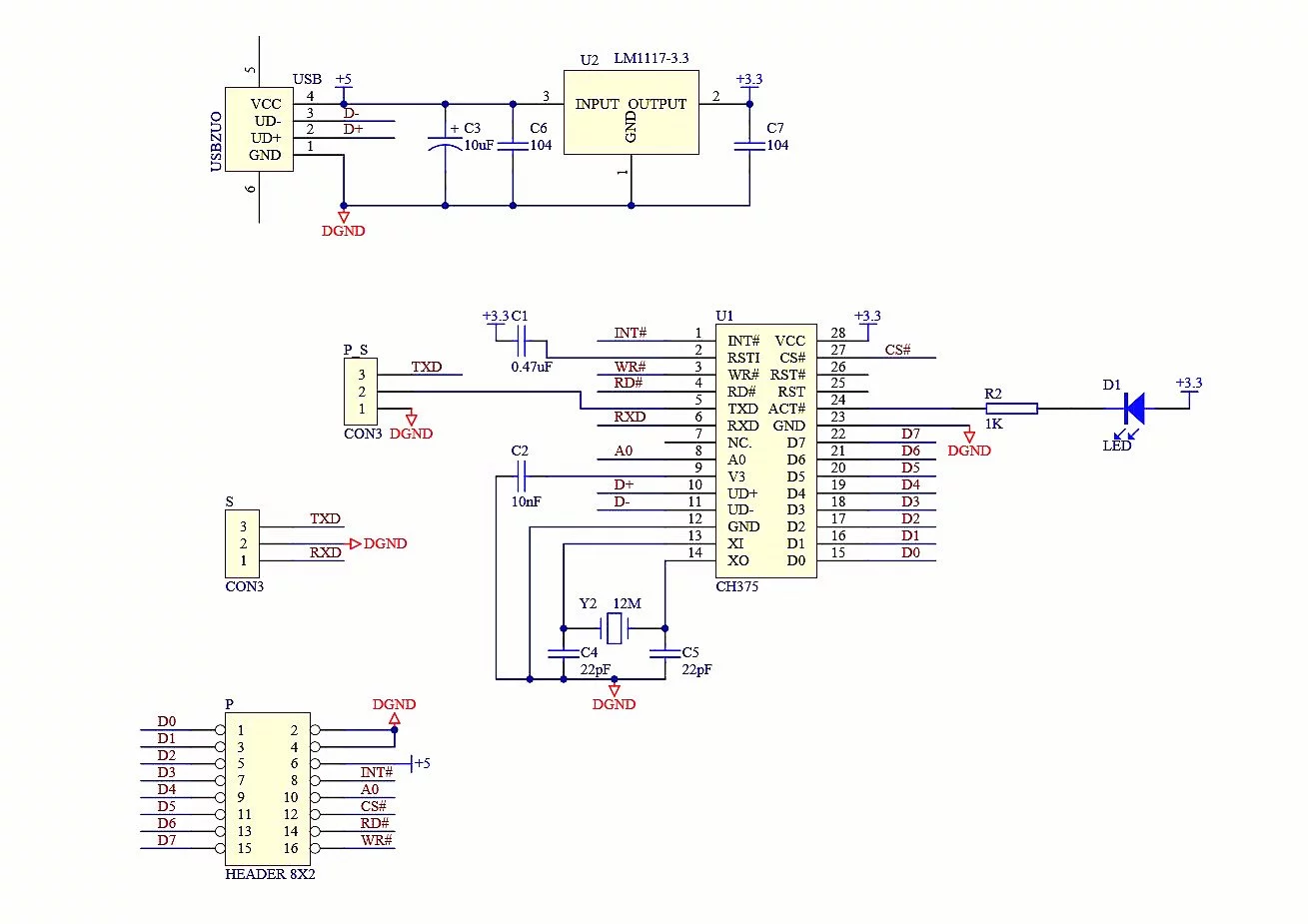

- NOYITO CH375 U-Disk Read Write Module Schematic Test Program https://1drv.ms/u/s!AlzQUCOyZQhKgQBlqxyc7HlpQ4UH?e=2QY31M
