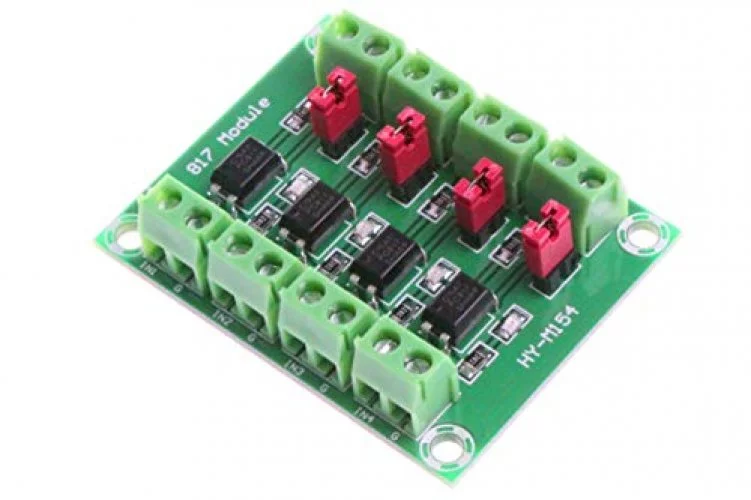

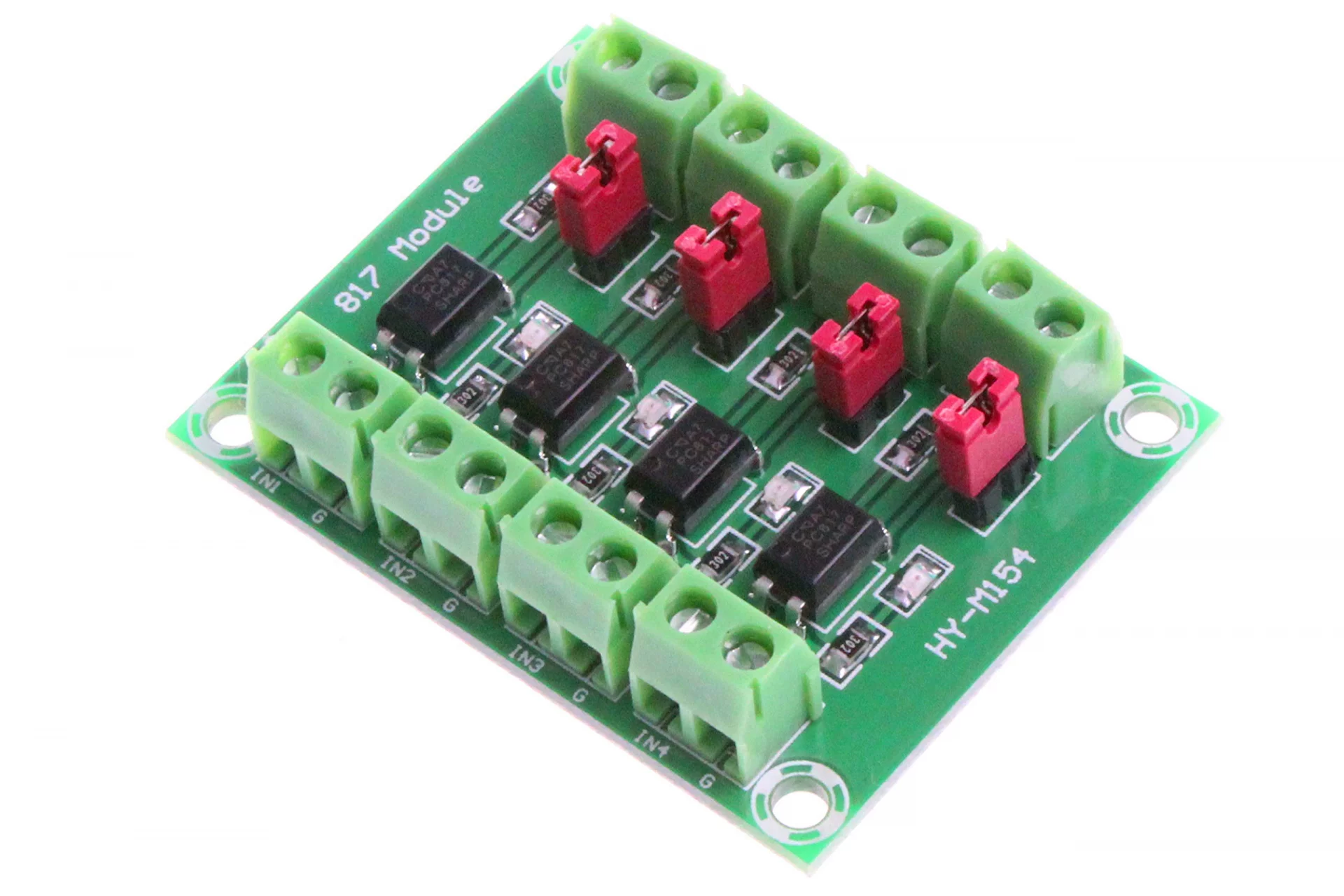

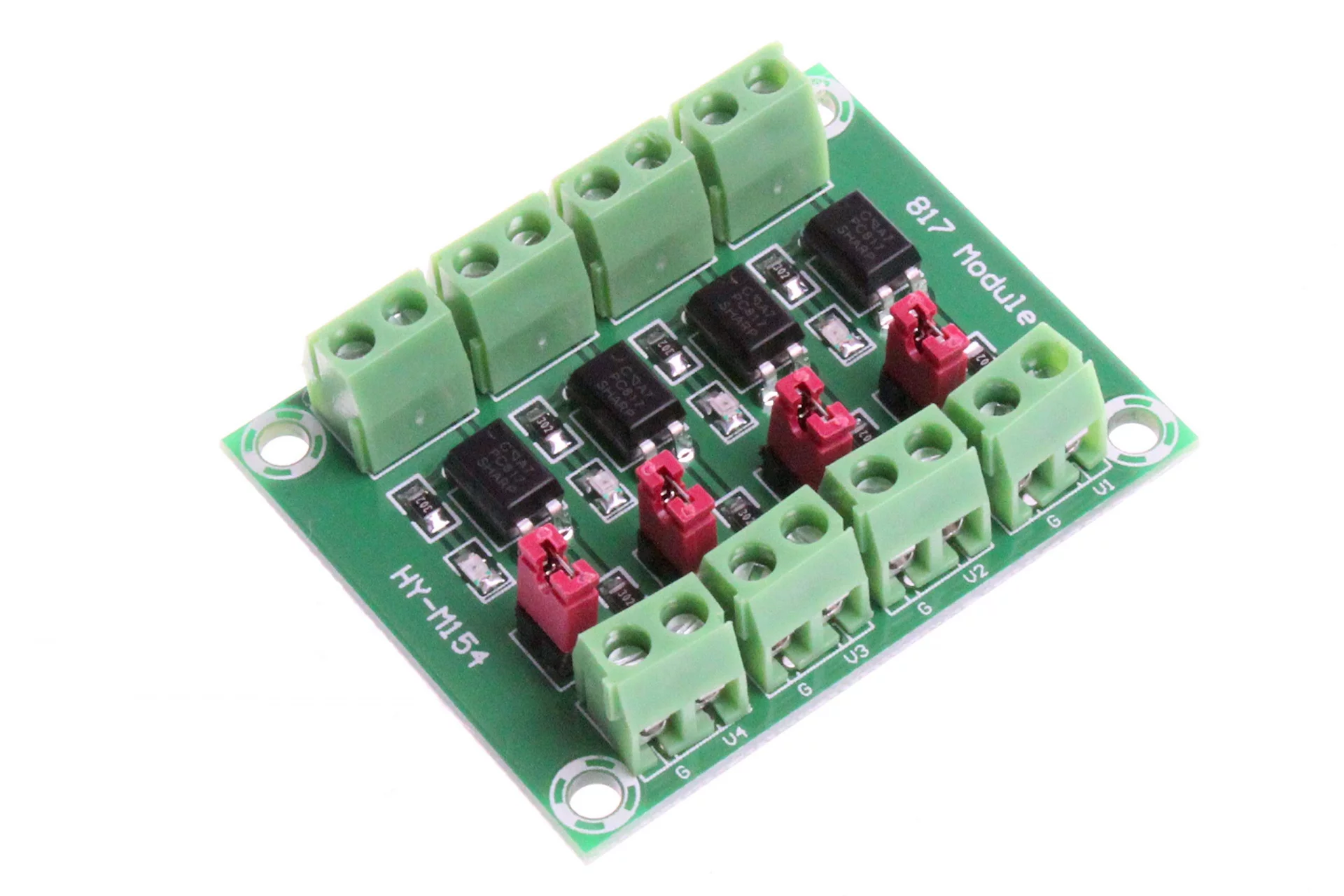

About the product
- This module is used when it comes to the need for isolation control and voltage conversion.
- Drive terminal signal voltage: 3.6-24V. Output terminal voltage range: 3.6-30V (output current depends on the specific situation but the maximum does not exceed 10MA, the total power is constant, the voltage and current are inversely proportional)
- It can realize 3.3V or 5V to control the interface of 3.6-30V voltage . After the control terminal is turned on, the controlled terminal will also be turned on.

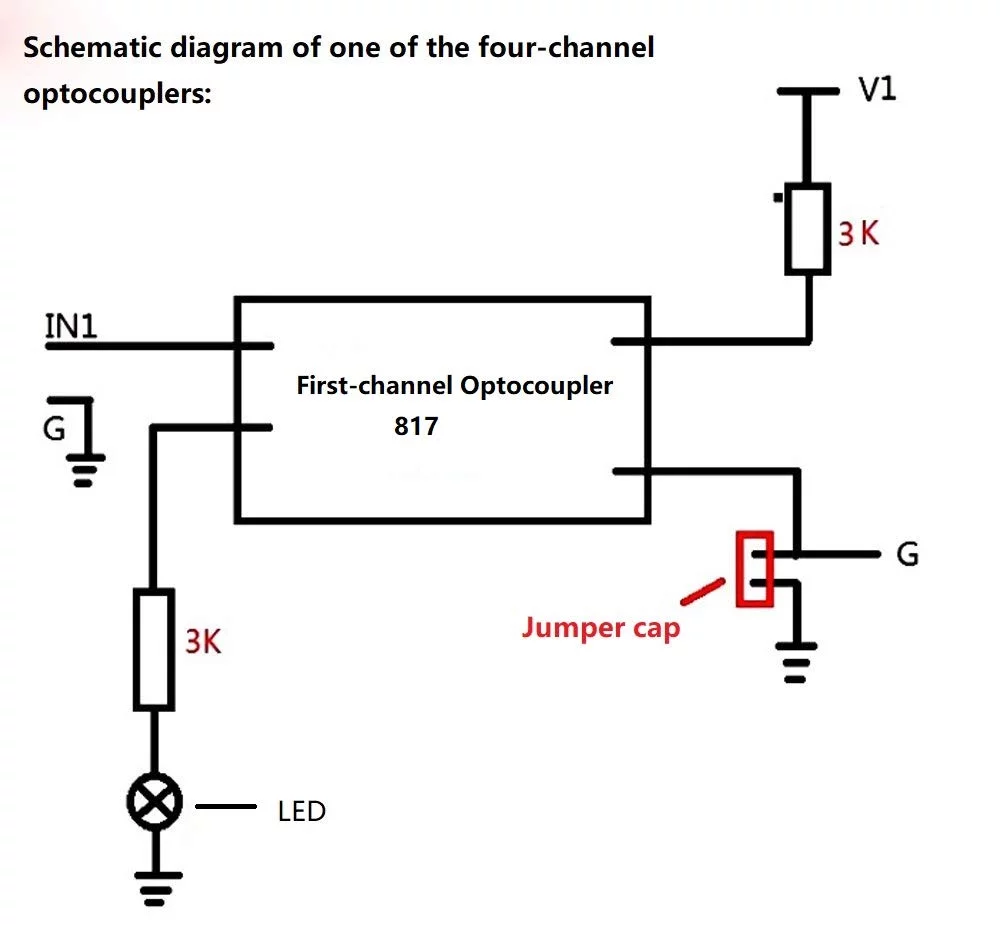

- Photoelectric isolation has strong anti-interference ability. It can drive high-power triodes, MOS tubes and other applications that require high-voltage driving, and can also directly drive low-power 24V relays.If it is a pulse signal, please note that the limit of 817 is 4KHZ or less. If the control signal is greater than 4KHZ, please do not use this module, it will not work properly.
- 8-Channel Optocoupler Isolation Board ASIN ： B09RGTBDKJ
- 3-5V, 12V, 24V 1-Channel Small Size Optocoupler Isolation Board ASIN: B0B5373L4P
