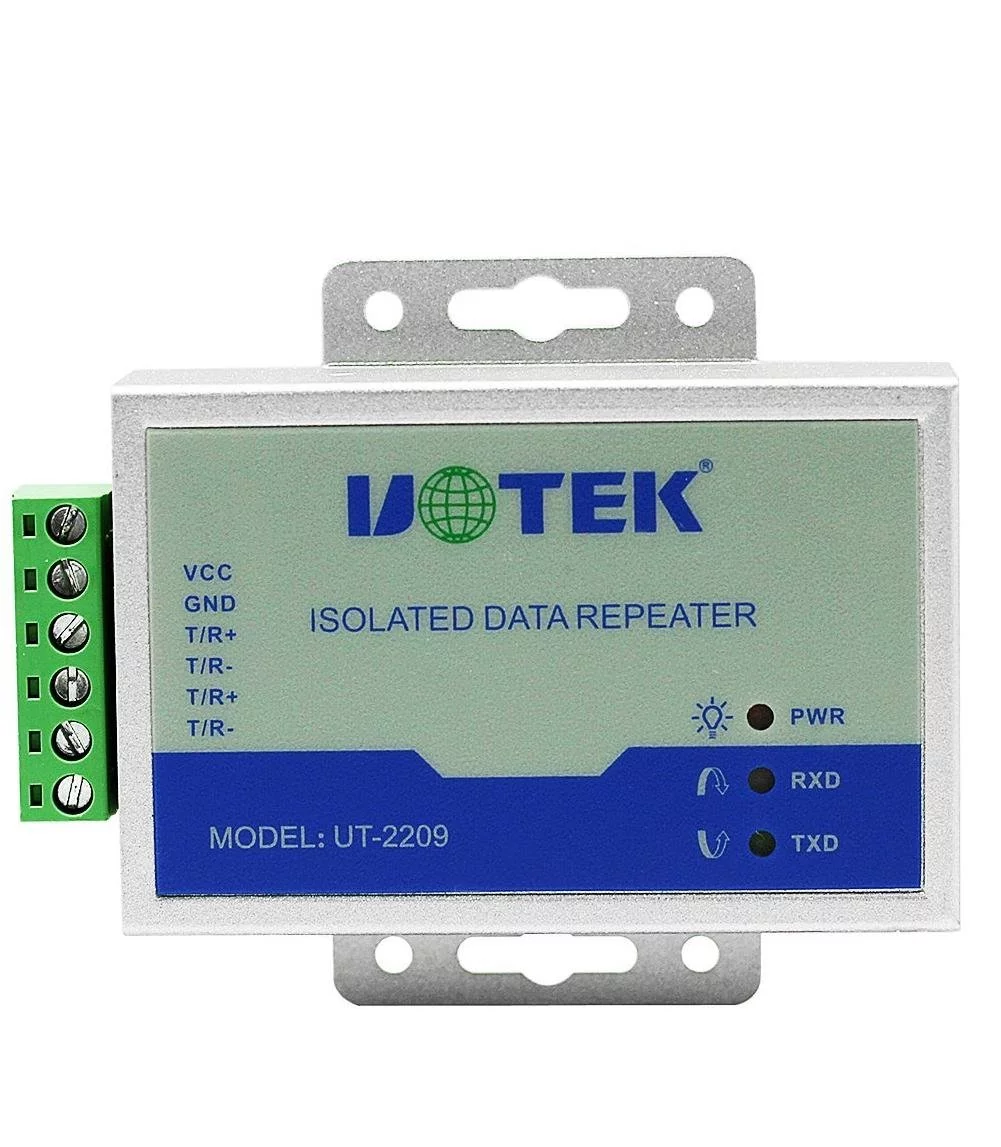

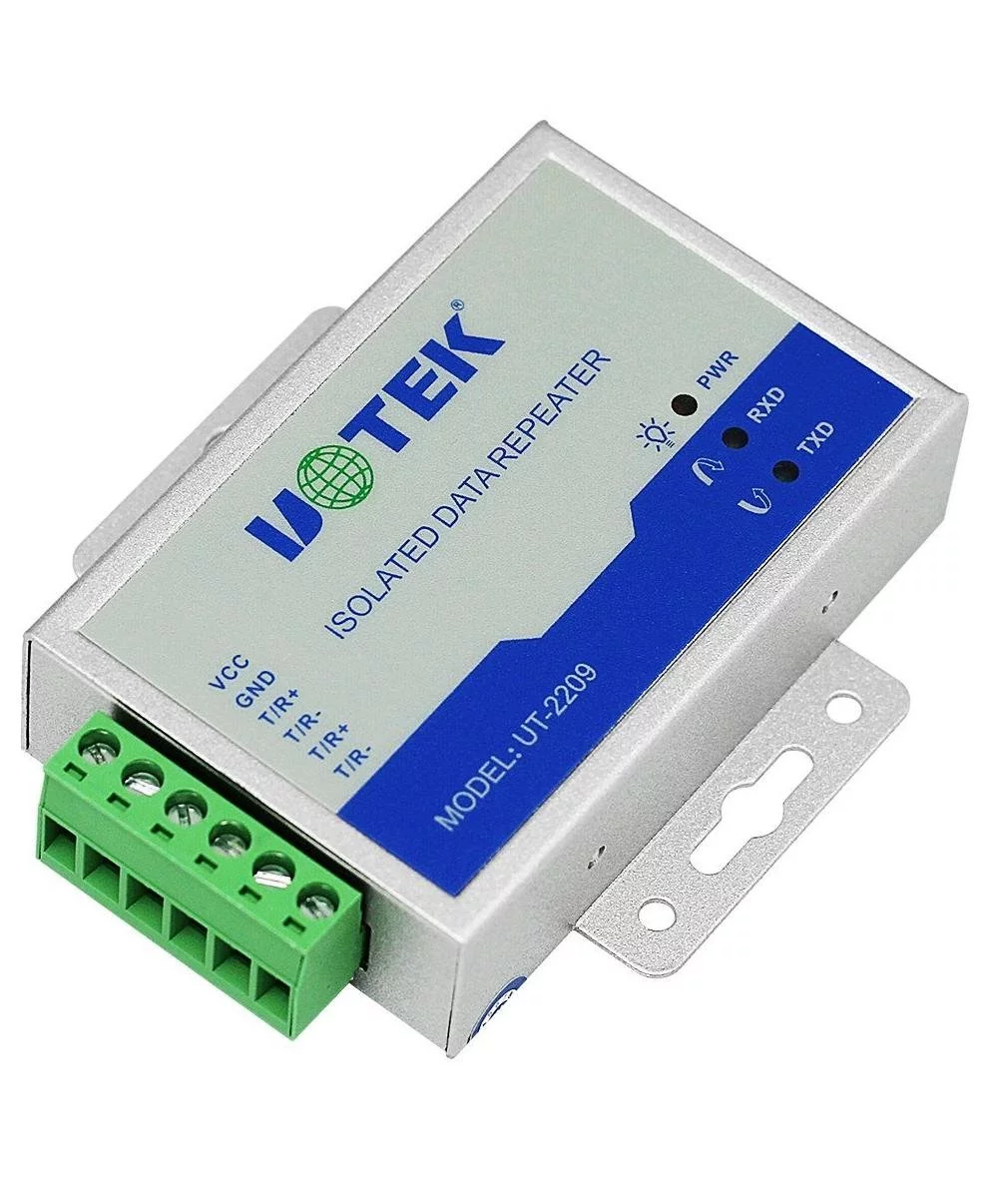

About the product
- Standards: RS-485 TIA/EIA ? Connector: RS-485 2 bits terminal block input RS-485 2 bits terminal block output
- Protection: RS-485 provides with 600W lightning, surge, 15KV ESD protection each line ? Working mode: asynchronous half-duplex
- LEDs for indicating PWR TXD, and RXD activity ? Transmission media: twisted-pair or shielded cable
- Baudrate: 300BPS-115.2K BPS ? Dimension: 79mmX74mmX22mm ? Operating temperature: -40? to 85?
- Relative humidity: 5% to 95 %( Non-condensing) ? Works with all communication software, plug & play ? Transmission distance: 0-1,200m (115,200bps-9,600bps)
