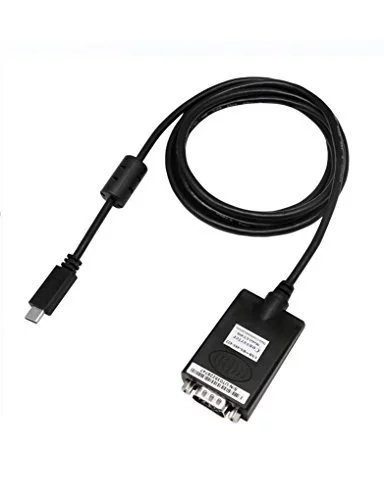

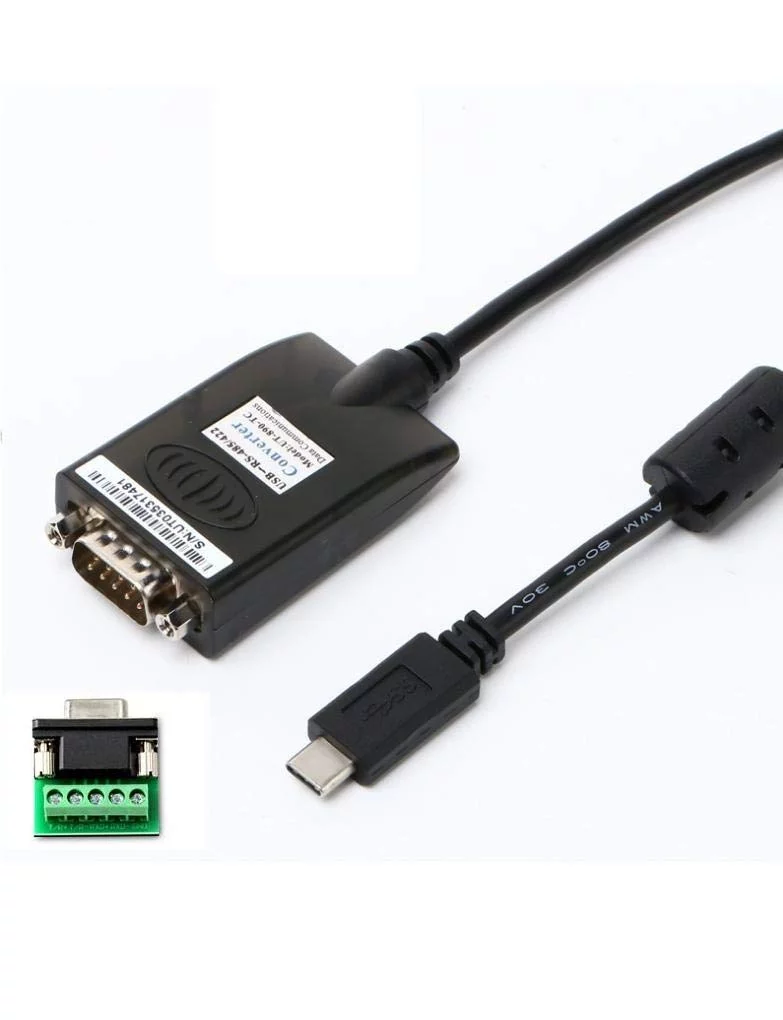

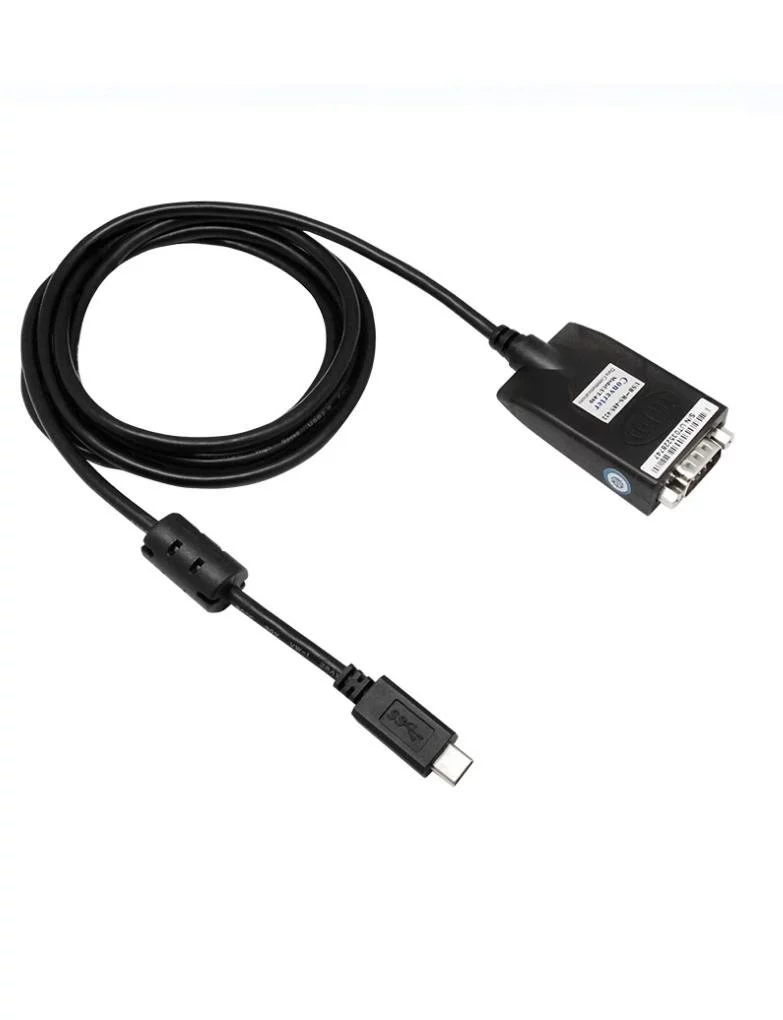

About the product
- Standards: USB V1.1, 1.0, 2.0, 3.1, RS-485/RS-422 EIA ? USB signal: VCC, DATA+, DATA-, GND, FG ? RS-485 signal: T/R+, T/R-, GND ? RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
- Working mode: Asynchronous, point to point or point to multi-point, 2-wire half duplex, 4-wire full duplex ? Direction control: Adopts flow direction auto-control technology, auto identify and control the flow transmission direction ? Baud rate: 300-921,600bps
- Load capcity: Supports point to multi-point, allows to connect up to 32 sets RS-422 or RS-485 device ? Transmission distance: RS-485/422 1,200m(9600bps), USB no more than 5m ?Port protection: 600W surge, 15KV ESD protection ? Connector: USB-C male, DB9 male ? Signal: TXD, RXD
- Transmission media: Twisted-pair or shielded wire ? Baud rate: 921,600bps 300M 38,400bps 600M 9,600bps 1.2KM ? Dimension: 55mmX36mmX18mm
- Working temperature: -40? to 85? ? Relative humidity: 5% to 95% ? Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
