About the product

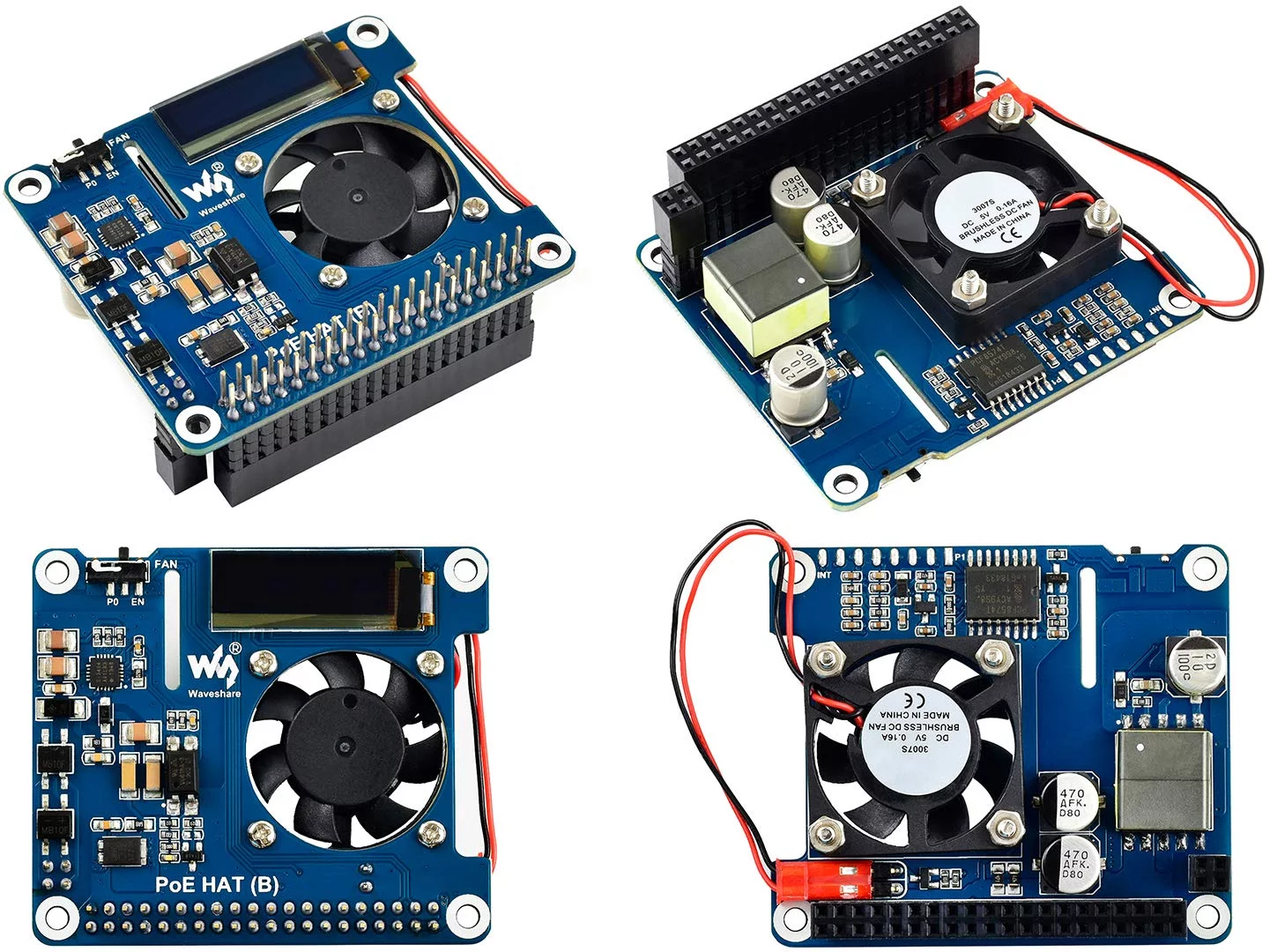

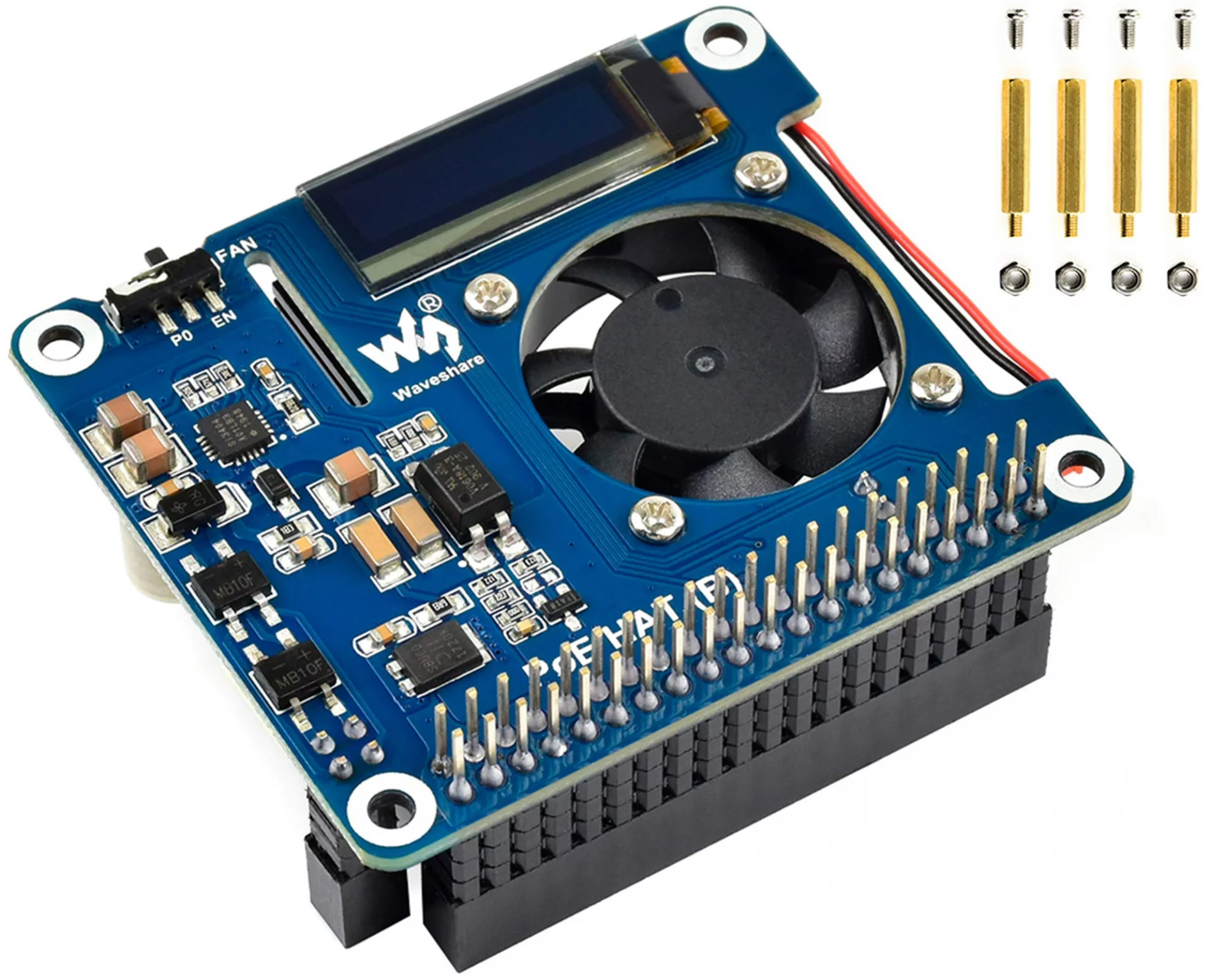

- POE HAT (B) for Raspberry Pi 4B/3B+,Power Over Ethernet HAT,Support 802.3af PoE Network,802.3af Power-Sourcing Equipment Required
- Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins

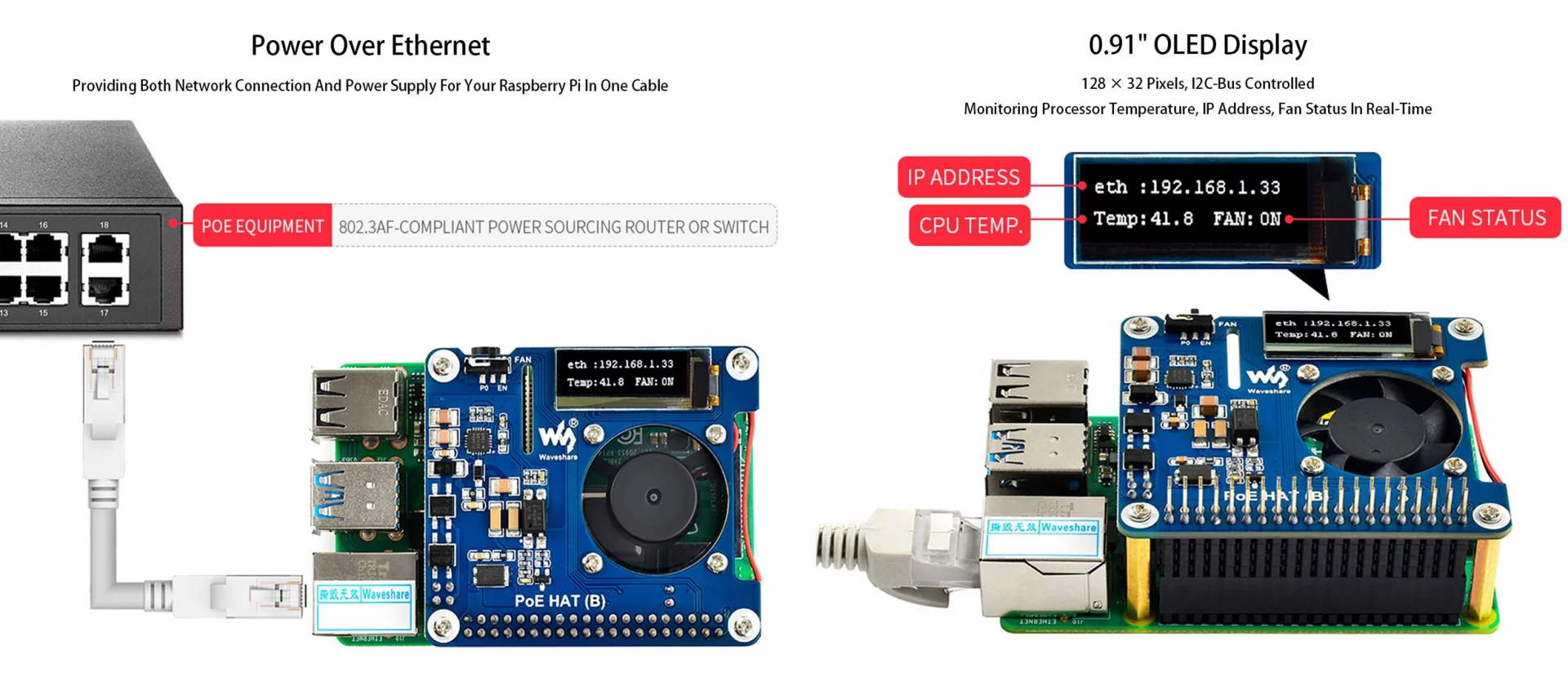

- 0.91\" OLED, for monitoring processor temperature, IP address, and fan status in real-time; Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
- POE POWER INPUT:37V ~ 57V DC in. OLED SIZE:0.91\". POE POWER OUTPUT:5V 2.5A DC out .
- OLED PIXELS:12832. NETWORK STANDARD:802.3af PoE. OLED DRIVER:SSD1306. DIMENSIONS:56.5 65mm . OLED DISPLAY COLOR:white.
